Need to test your gas boilers? HJ Test System, the folks who make the testing gear, have built a system just for you. If you're a boiler maker, a testing lab, or someone who cares about quality, this setup will run your boilers through all the important tests. It's built to meet global standards, helps you make sure your products are top-notch, and can boost how fast you make 'em and how reliable they are.
Item No. :
HJ-WMBT005Minimum Order Quantity (MOQ) :
1 SetPayment Method :
T/T,D/P,PaypalPrice :
NegotiatableProduct Origin :
Türkiye,ChinaSupply Ability :
One piece for three monthsLead Time :
90 working daysConventional packaging :
PlywoodWall-mounted boiler testing equipment with Multi-parameter Detection
Product introduction:
The HJ Test System gas boiler test system ensures quality with reliable tech and performance.
We've combined advanced tech with real-world needs to create a system that reflects our focus on quality. It delivers stable, accurate data for both production and lab use, giving you an edge in the market.
Product Features:
Accurate detection, reliable data: high-precision sensors and advanced data analysis algorithms are used to ensure the accuracy and repeatability of various test data, so that you can know the product performance.
Full coverage, complete functions: multiple key performances of gas wall-mounted boilers can be tested to meet the testing needs in different scenarios without the need for additional equipment.
Convenient operation, efficient and worry-free: the humanized operation interface design is simple and easy to understand, and operators can get started without complex training, which greatly improves the testing efficiency and saves labor costs.
Intelligent control, safe and stable: it has a complete intelligent control system, which can monitor various parameters in the test process in real time, automatically alarm and take protective measures when abnormalities occur, to ensure the safety of equipment and operators.
Flexible adaptation, wide compatibility: it can adapt to the testing of gas wall-mounted boilers of different brands and models, with strong compatibility, providing strong support for your diversified testing needs.
Durable and easy to maintain: high-quality parts and materials are used, the equipment has a long service life, and daily maintenance is simple, which reduces your use cost.
International reference standards (clauses and details) :
EN 483:2018: Construction, performance and test requirements for gas central heating boilers (output power not exceeding 70kW), this device complies with the provisions for thermal efficiency, flue gas emissions, etc.
ANSI Z21.13-2019: Standard for gas household central heating boilers, the device meets the test clauses for combustion performance, safety devices, etc. in this standard.
GB 25034-2020: Gas heating water heater, the device meets the test requirements for heat load, thermal efficiency, carbon monoxide content in flue gas, etc. in this standard.
ISO 13259:2018: Determination of air and flue gas path resistance of gas burners and gas appliances, this device follows the test methods and procedures of this standard.
IEC 60335-2-10:2019: Safety of household and similar electrical appliances Part 2-10: Particular requirements for gas burning appliances, the device complies with the safety test clauses therein.
Technical parameters:
| Project | Parameters |
| Gas flow rate | 1~100 L/min |
| Gas primary pressure | 0~10KPa |
| Gas secondary pressure | 0~5KPa |
| Bathroom water flow rate | 0~20L/min |
| Heating water flow rate | 0~40L/min |
| Working voltage of the whole machine | 0~300V |
| Working current of the whole machine | 0~10A |
| Power of the whole machine | 0~3KW |
Test objects:
Household gas heating water heater (wall-mounted)
Commercial gas heating water heater (wall-mounted)
Condensing gas wall-mounted boiler
Conventional gas wall-mounted boiler
What items can be tested?
Thermal efficiency test: including thermal efficiency under rated heat load, thermal efficiency under partial load, etc.
Gas consumption test: gas consumption under different working conditions.
Water flow test: hot water output, water pressure loss, etc.
Smoke emission test: the content of gases such as O₂, CO, CO₂ in the smoke.
Combustion stability test: flame state, combustion noise, etc.

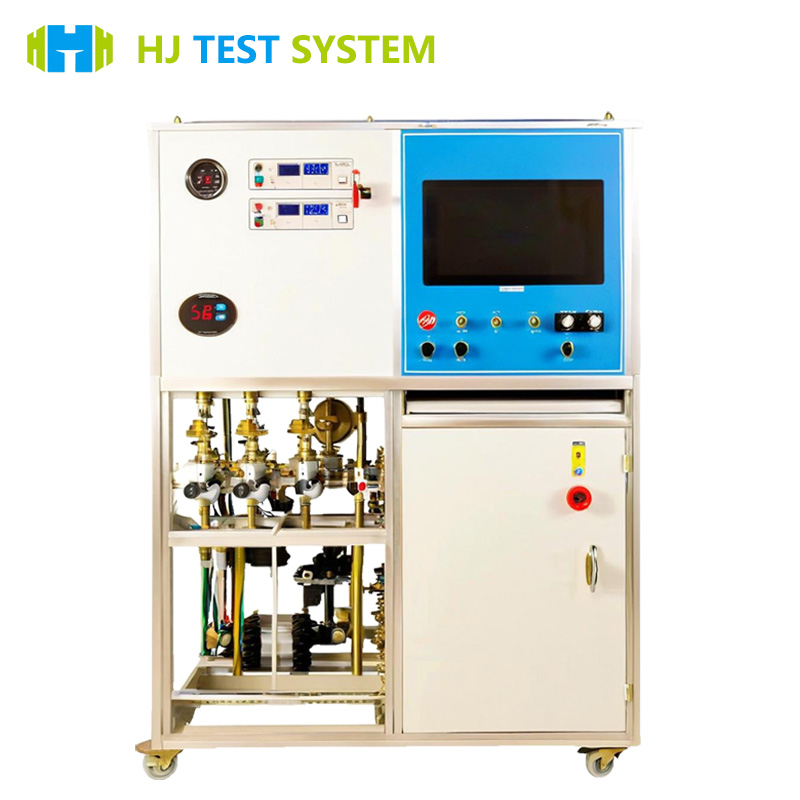

Detailed image:
