VEAT-009 vacuum drainage separation tank is the core unit of liquid-gas separation in vacuum system. Aiming at the liquid entrainment damage problem of vacuum equipment such as Roots pumps and rotary vane pumps, it achieves 99.9% capture efficiency of droplets ≥5μm through cyclone centrifugation + gravity sedimentation. It is suitable for a wide vacuum range of 1~1000mbar to ensure the stable operation of the vacuum unit and complies with ASME and ISO 6312 standards.
Item No. :
HONGCEMinimum Order Quantity (MOQ) :
1 setPayment Method :
L/C, T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
10 Set per monthLead Time :
90 DaysConventional packaging :
PlywoodVacuum Drain Separator Tank 99.9% Liquid To Gas Separation Asme Certified
Product Introduction

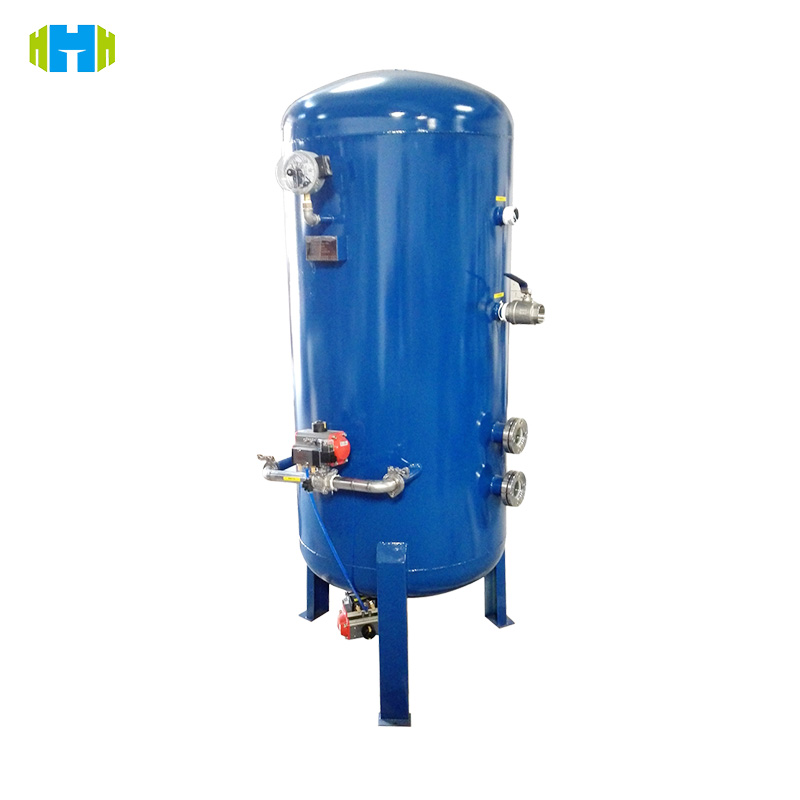

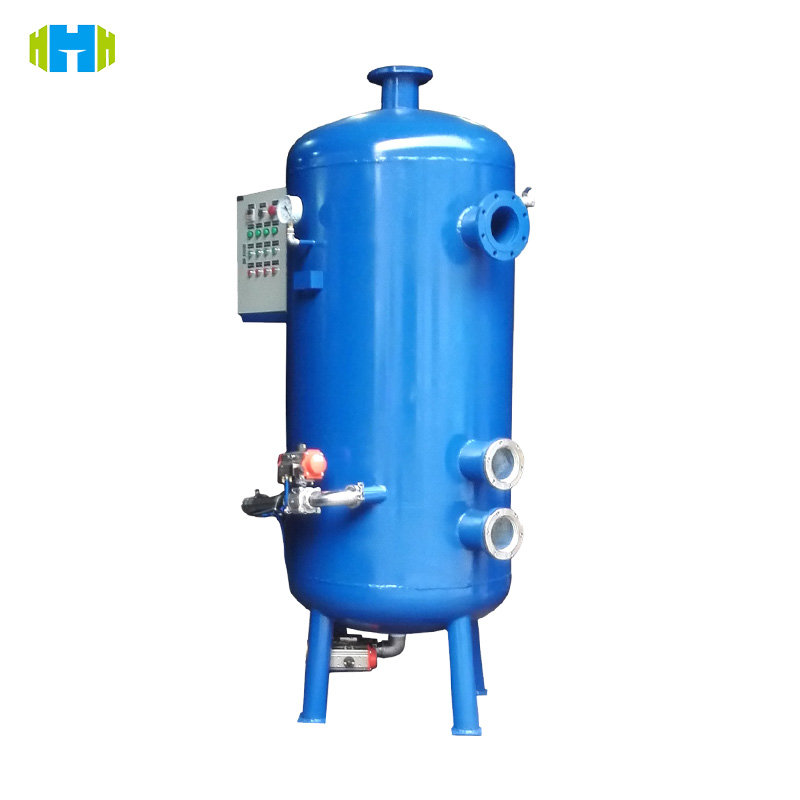

VEAT-009 vacuum drainage separation tank is designed to solve the core pain point of liquid entrainment and damage to the pump body in the vacuum system. It integrates cyclone centrifugal + gravity sedimentation dual-stage separation technology, and achieves 99.9% capture efficiency for droplets ≥5μm. It is equipped with intelligent liquid level control (float + photoelectric dual detection) and anti-backflow sealing structure to effectively intercept condensed water, solvent droplets and other media, and ensure the stable operation of Roots pumps, rotary vane pumps and other units; the main body can be selected from 304 stainless steel, 316L (corrosion resistant) or Hastelloy (strong corrosion), suitable for 1~1000mbar wide vacuum degree and -20~80℃ working conditions, meeting ASME (pressure vessel), ISO 6312 (liquid-gas separation performance) and other international standards, through modular quick installation and low-resistance flow channel design, seamlessly connect vacuum distillation, drying, impregnation and other processes, and help industrial vacuum systems operate efficiently and in compliance.
International reference standards:
ISO 6312:2018 Liquid-gas separation equipment performance test ≥5μm droplet separation efficiency ≥99%, pressure drop ≤10kPa
ASME BPVC Section VIII material certification, pressure test (≥1.6MPa)
EN 13445:2021 welding process certification, leakage rate ≤10⁻⁴mbar・L/s
GB 150-2011 strength calculation, non-destructive testing (RT/UT)
| Parameter | Specification |
| Model No. | VEAT-009 |
| Core Function | Liquid-gas separation for vacuum systems |
| Separation Efficiency | ≥99.9% (≥5μm droplets) |
| Treated Gas Flow | 50~2000 Nm³/h (modular expansion) |
| Applicable Vacuum Range | 1~1000 mbar |
| Operating Temperature | -20~80℃ |
| Max Working Pressure | 1.6 MPa (custom up to 4 MPa) |
| Material Options | 304 SS, 316L SS, Hastelloy C-276 |
| Level Control | Float switch + photoelectric dual detection |
| Inlet/Outlet Connection | DN50~DN200 flange (customizable) |
| Drain Valve Type | Pneumatic ball valve (DN25~DN50) |
| Pressure Drop | ≤5 kPa (at full load) |
| Mist Eliminator Precision | ≥5μm (wave plate structure) |
| Installation Type | Horizontal/vertical (optional) |
| Leakage Rate | ≤10⁻⁴ mbar·L/s (EN 13445 standard) |
| Weight | 80~500 kg (varies by size/material) |
| Overall Dimensions (L×W×H) | 800×600×1200mm (base model) |
