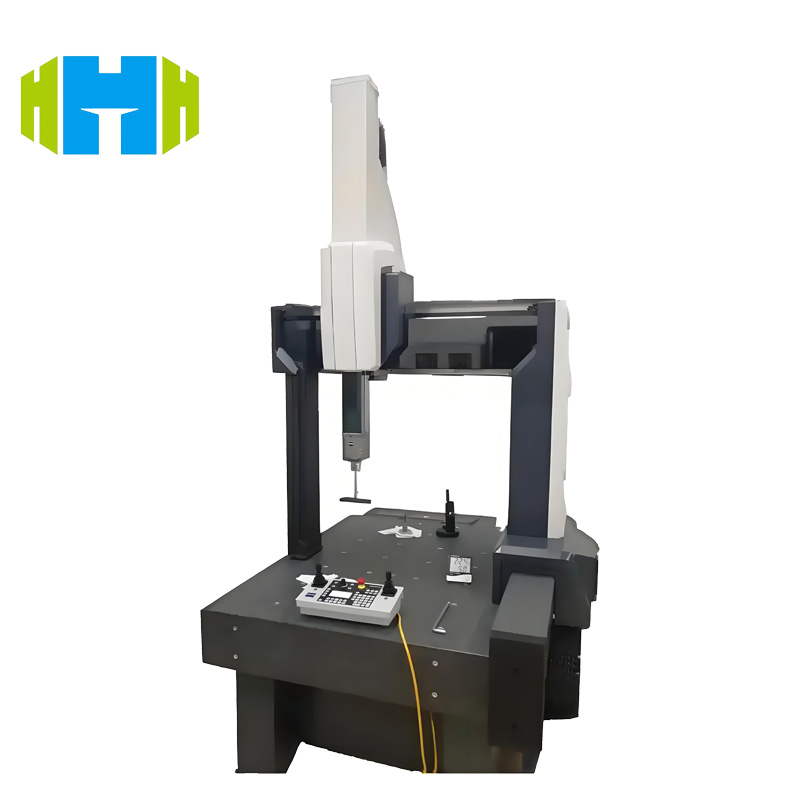

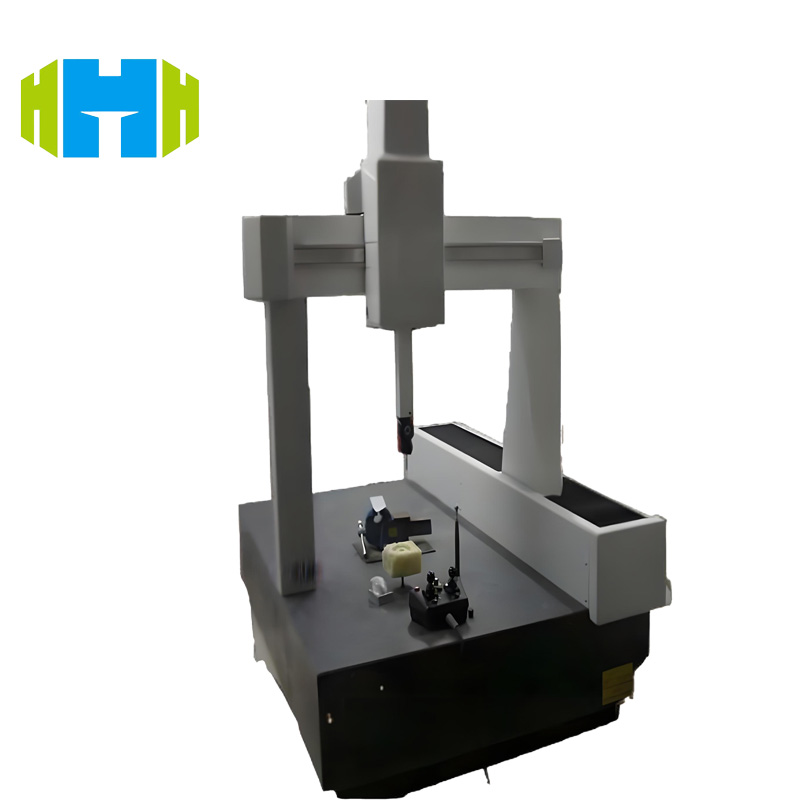

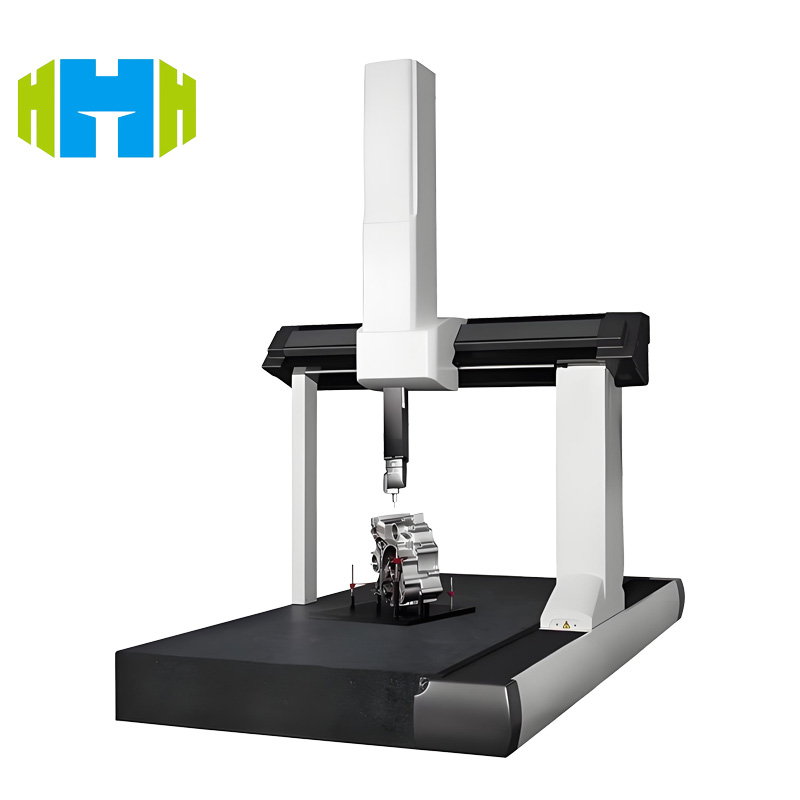

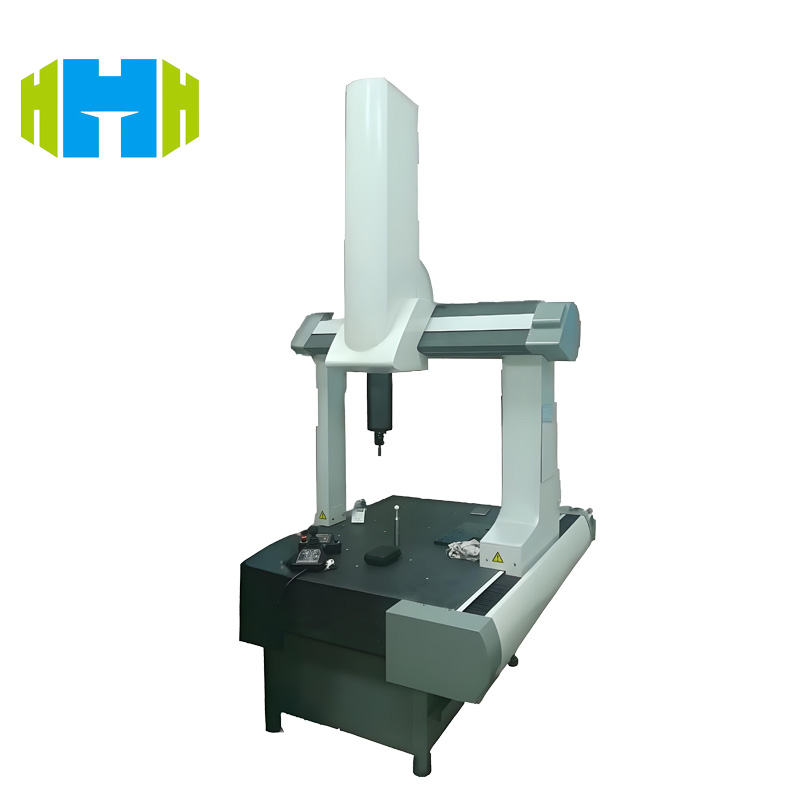

In the manufacturing and quality control processes of industrial electrical equipment, the Coordinate Measuring Machine (CMM) is an essential tool for ensuring the highest level of precision.
Item No. :
HJ-IEPTE-011Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C,T/T,PayPalPrice :
NegotiatableProduct Origin :
TurkiyeSupply Ability :
1 sets per 2 monthLead Time :
60 Working DaysConventional packaging :
Plywood
The CMM is designed to measure the three-dimensional dimensions and shape errors of various components used in industrial electrical devices. It provides highly accurate and reliable measurement data, enabling manufacturers to maintain strict quality standards and optimize production processes.
|
Testing Parameter |
Description |
Importance |
|
Measurement Range |
The CMM typically has a measurement range in the X, Y, and Z axes. For example, it can measure lengths from a few millimeters to several meters depending on the model. This wide range allows it to handle components of different sizes, from small electrical connectors to large machine parts used in electrical systems. |
Ensures versatility in measuring various components. |
|
Measurement Accuracy |
It offers extremely high measurement accuracy, usually within a tolerance of ±[X] micrometers or even better. Such precision is crucial as even the slightest deviation in dimensions can affect the performance and fit of electrical components. For instance, in the assembly of precision electrical instruments, accurate measurements ensure proper functioning. |
Guarantees the quality and reliability of measured components. |
|
Probe System |
There are different types of probes available, such as touch-trigger probes and scanning probes. Touch-trigger probes are ideal for quickly taking discrete measurement points, while scanning probes can capture detailed surface information for complex shapes. The choice of probe depends on the specific measurement requirements. |
Enables accurate measurement of different geometries and surface characteristics. |
|
Measurement Speed |
The CMM can operate at different speeds. Faster measurement speeds are beneficial for high-volume production environments where quick inspections are required. However, slower speeds may be used for more precise measurements when needed. Manufacturers can adjust the speed according to their specific needs. |
Balances efficiency and accuracy in the measurement process. |
Enhanced Product Quality: By precisely measuring the dimensions and shapes of components, manufacturers can ensure that all parts meet the required specifications. This significantly reduces the risk of product failures and improves the overall quality and reliability of industrial electrical equipment.
Cost Savings: Early detection of dimensional errors allows for timely corrections, avoiding costly rework or scrap. This helps to reduce production costs and increase the efficiency of the manufacturing process.
Improved Process Control: The CMM provides detailed measurement data that can be used to analyze and optimize production processes. Manufacturers can identify trends and make adjustments to improve the consistency and quality of their products.
In conclusion, the Coordinate Measuring Machine is an indispensable asset for the industrial electrical manufacturing industry. Its advanced features and parameters make it a valuable investment for ensuring the precision and quality of components, ultimately leading to better products and increased customer satisfaction.
