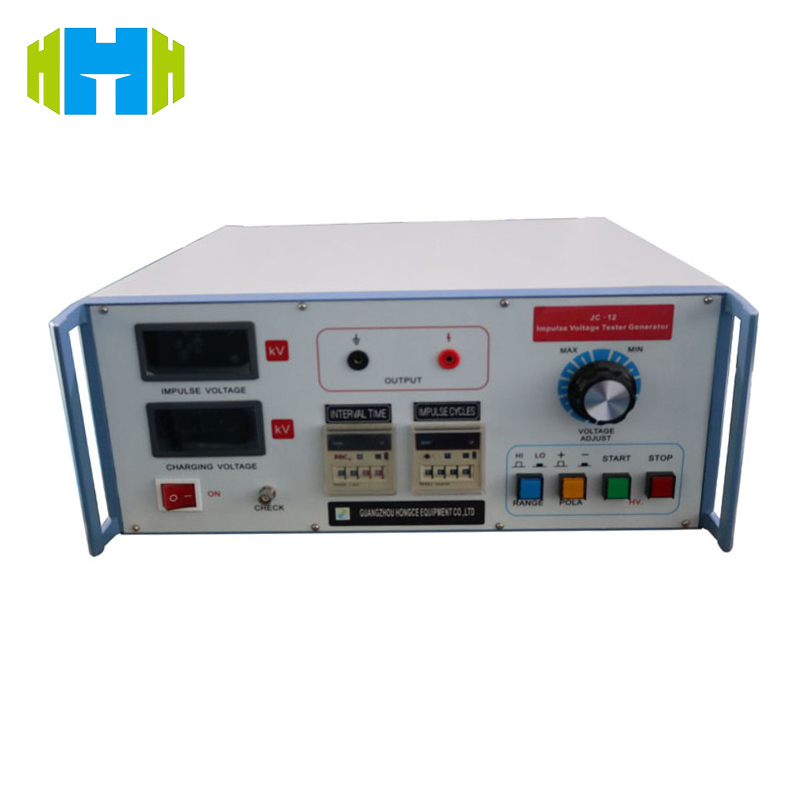

HJ0602 electrical impulse voltage tester, with an output voltage of up to 12kV (±5%), accurately generates 1.2/50μs standard impulse waveform (wavefront time 1.2μs±30%, half-wave time 50μs±20%), complies with IEC 60335-1 Clause 14 standard, has built-in overvoltage and overcurrent protection, and can automatically or manually detect transient overvoltage, electrical clearance and creepage distance of household appliance components. It is widely used in household electrical safety performance testing.

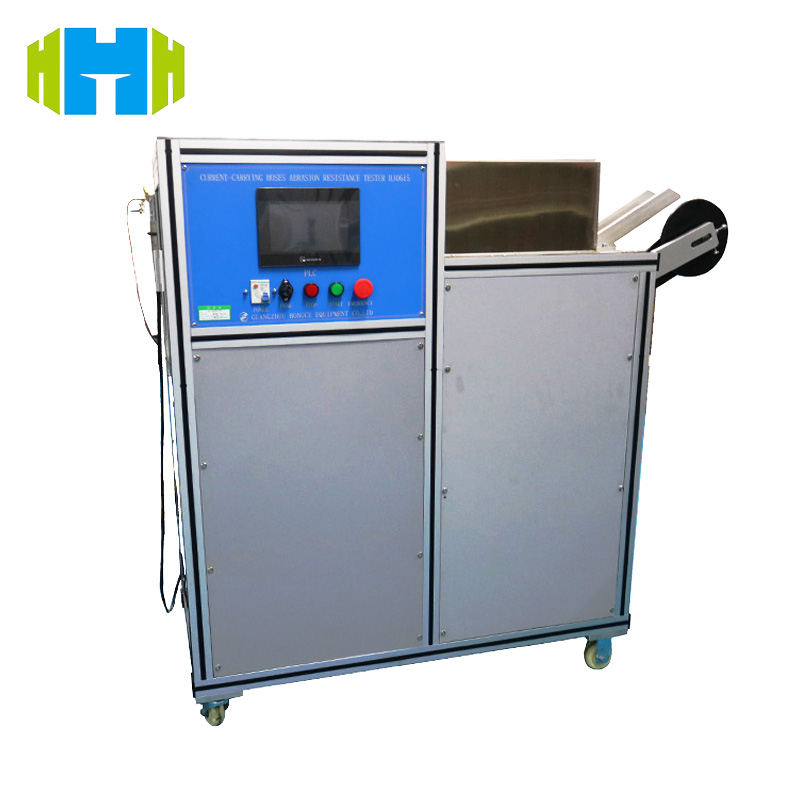

HJ0615 Domestic electricity communication pipe abrasion resistant test design, conforms to IEC60335-2-2 safety standard (Clause 21.102), Support suction pipes, cleaning equipment pipes, laundry machine water pipes, etc., and million-day wear-resistant circulation rings.

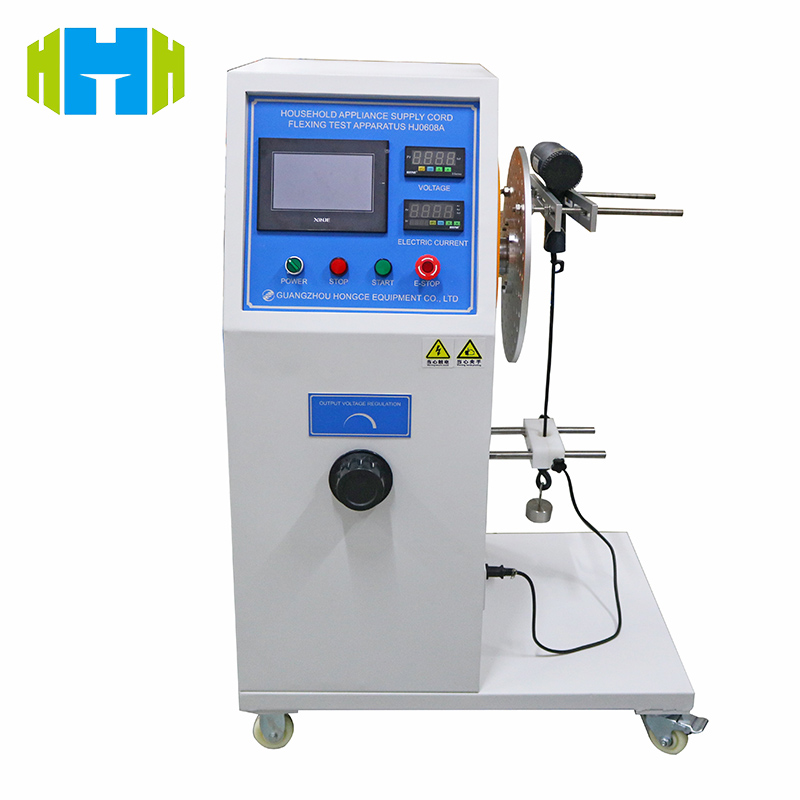

The Household Appliance Supply Cord Flexing Test Apparatus is special designed and manufactured according to IEC60335-1 clause 25.14, it is used to check the power cord flexing (bending) resistance performance of the small household appliances (such as Coffee pot / electric iron) and lamps, also applicable for power cord flexing endurance tester of plugs and sockets.
The device is used to check abrasion strength of printed circuit boards or the insulating accessible parts of the household appliances. It conforms to the standard requirement of IEC60950 clause 2.10.8.4 and IEC60335-1 clause 21.2.
