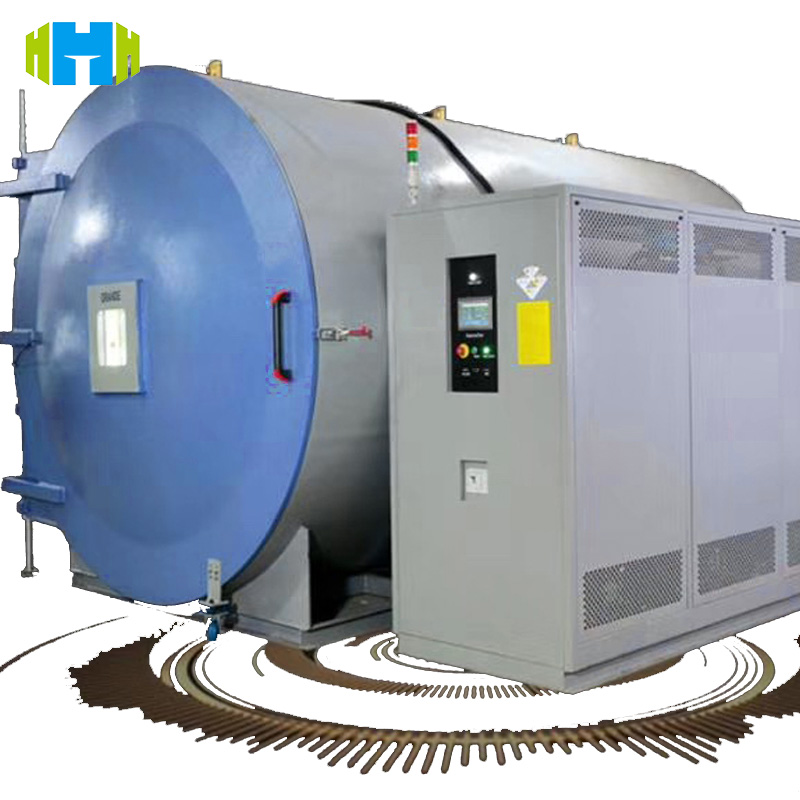

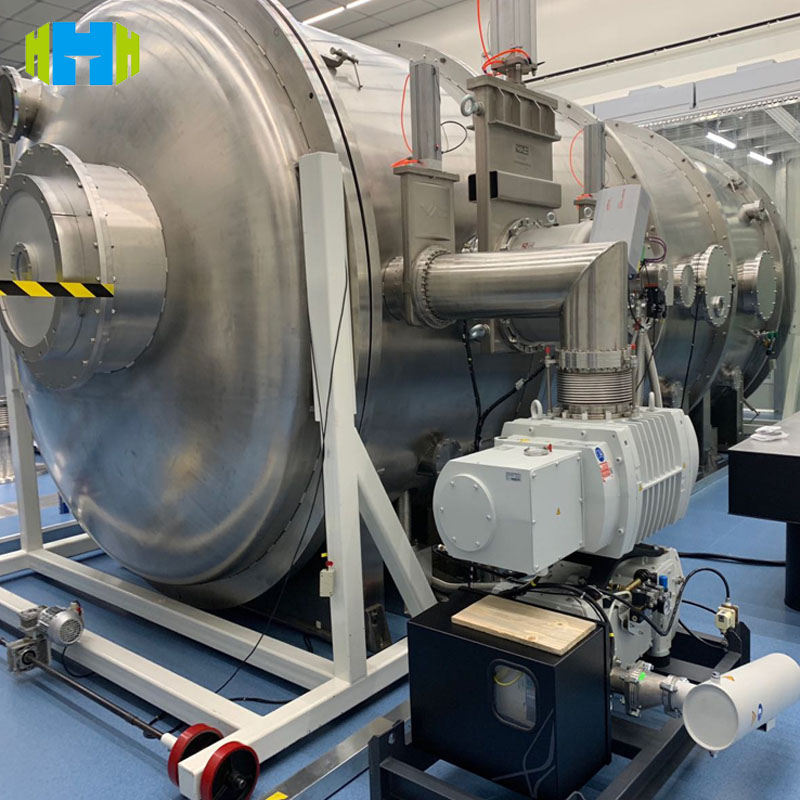

Space Grade Thermal Vacuum Test System 1×10⁻⁵Pa Extreme Vacuum -180~200℃ Wide Temperature Range

Space Grade Thermal Vacuum Test System 1×10⁻⁵Pa Extreme Vacuum -180~200℃ Wide Temperature Range

VET-007 focuses on high-precision fields such as aerospace and satellites, simulating the extreme environment of space: 1×10⁻⁵Pa extreme vacuum + -180~200℃ wide temperature range, integrated solar radiation + infrared heating functions, providing a precise testing environment for product reliability verification.

Item No. :
VET-007
Minimum Order Quantity (MOQ) :
1 Set
Payment Method :
L/C, T/T
Price :
Negotiable
Product Origin :
CHINA
Supply Ability :
10 Set per month
Lead Time :
90 Days
Conventional packaging :
Plywood

Inquiry now

Product Details

Space Grade Thermal Vacuum Test System 1×10⁻⁵Pa Extreme Vacuum -180~200℃ Wide Temperature Range

Core features

Vacuum & temperature domain breakthrough: 1×10⁻⁵Pa ultimate vacuum, 1.3×10⁻⁴Pa working vacuum, -180~200℃ temperature control ±0.5℃, uniformity ≤±5℃.
Full environment simulation: synchronous reproduction of vacuum, temperature change, solar radiation, infrared heat flow, close to real space conditions.
Hard-core hardware: AISI 304L seamless welded cabin (wheel lock + fluororubber seal), pressure-resistant and corrosion-resistant, suitable for high-frequency testing.
Intelligent testing: programmed condition editing + automatic data acquisition and analysis, support remote monitoring, 30% efficiency improvement + data traceability.

Testing capabilities

Extreme environment verification: structural deformation and performance attenuation test under extreme temperature cycle (aerospace components).
Multi-field coupling test: material degassing, device pressure resistance and functional stability verification under high vacuum.
Thermal control & long-term reliability: thermal control system performance under solar/infrared heat flow, and evaluation of the impact of vacuum storage on product life.

Technical Parameters


Parameter	Technical Details
Model	VET-007
Ultimate Vacuum	Better than 1×10⁻⁵ Pa
Working Vacuum	Better than 1.3×10⁻⁴ Pa
Temperature Range	-180℃ ~ 200℃
Temperature Control Precision	±0.5℃
Temperature Uniformity of Radiator	≤ ±5℃
Radiator Surface Properties	Inner wall painted black; Solar absorptivity ≥0.95; Hemispherical emissivity ≥0.90; No radiation shielding on outer surface
Infrared Heating Heat Flux	100W/m² ~ 1800W/m²
Measurement Capabilities	Vacuum & temperature measurement
Chamber Material	AISI 304L stainless steel (seamless welding)
Chamber Door Design	External sandblasting + internal cooling fins; Equipped with wheel locks & fluororubber O-rings
Vacuum System Configuration	Internationally renowned brand (two-stage vane pump + helium cryopump with exhaust filter)
Power Supply	3φ 220V/380V/480V+N+G, 50/60Hz
