Protection Relay Tester Multi-Channel 300v/105a Output Iec 60255 Certified

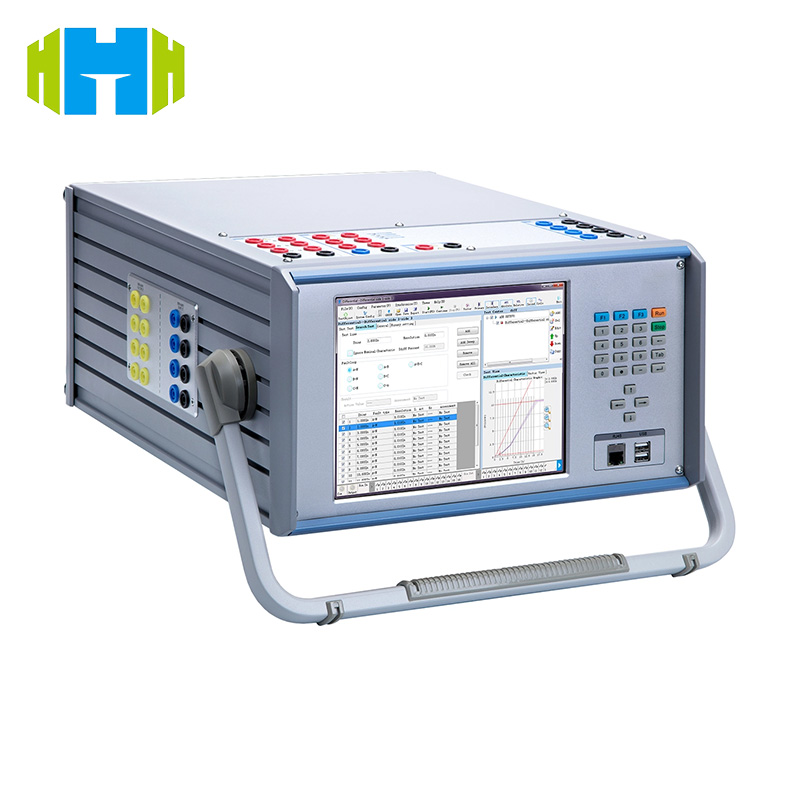

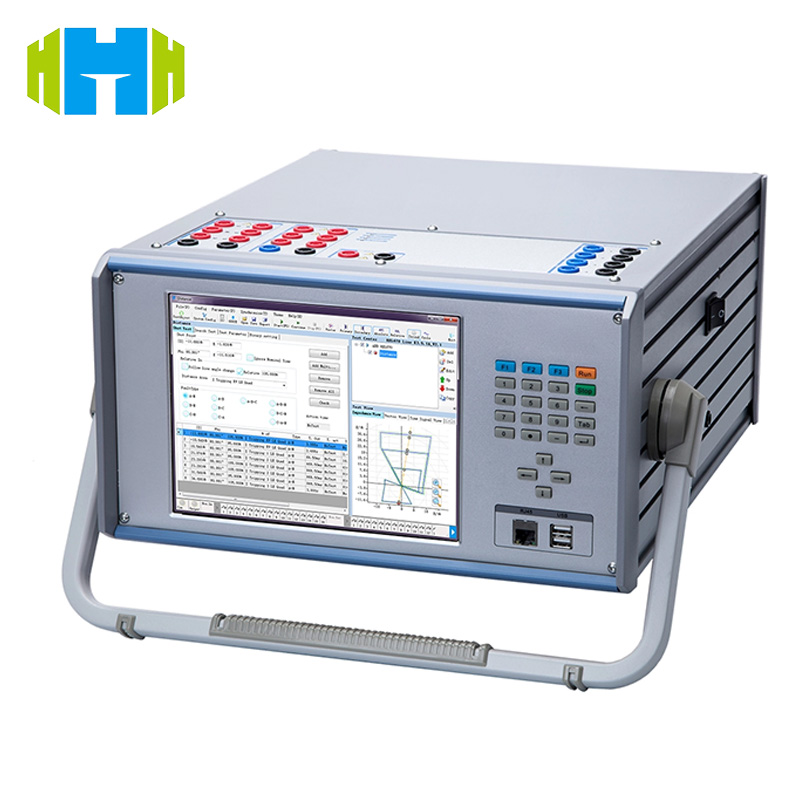

RPT-003 is a relay protection tester that complies with international standards (IEC 60255, GB/T 7261). It has 4×300V AC voltage and 3×35A AC current high-precision output, covers 5-1000Hz frequency and ±0.001° phase resolution, accurately simulates power fault scenarios, and provides core support for the action value, whole group characteristics, and anti-interference performance testing of relay protection devices, ensuring the safety and stability of the power system.

Item No. :
RPT-003
Minimum Order Quantity (MOQ) :
1 Set
Payment Method :
L/C, T/T
Price :
Negotiatable
Product Origin :
China
Supply Ability :
10 Set per month
Lead Time :
90 Days
Conventional packaging :
Plywood

Inquiry now

Product Details

Protection Relay Tester | Multi-Channel 300v/105a Output | Iec 60255 Certified

Product Introduction

RPT-003 adopts modular high-precision linear power amplifier technology and embedded intelligent control system, which can simulate complex fault scenarios such as power grid short circuit, harmonic interference (within 60 times) and frequency fluctuation (0.001Hz~1kHz), and automatically generate ISO standard test reports. The device has built-in multi-channel output module (AC 300V/105A, DC 300V/20A), phase accuracy ±0.05°, and is suitable for full parameter testing of differential relays, reclosing controllers and PLC modules. Remote control is achieved through RJ45 Ethernet or customized software, and efficiency is improved by 30%.

Product Features

Ultra-high precision output

Voltage: AC ±0.02% accuracy, DC ±10mV error (<5V), resolution 1mV.
Current: AC ±0.03% accuracy, DC ±5mA error (<1A), resolution 1mA.

Multi-channel synchronous control

Supports parallel output of 4 AC voltages (300V/120VA) and 3 AC currents (35A/450VA), suitable for complex test scenarios.

Dynamic simulation capability

Frequency range 0.001Hz~1kHz, supports harmonic superposition, transient overvoltage and GPS synchronous end-to-end testing.

Industrial-grade reliability

IP65 protection level, operating temperature -10℃~55℃, built-in overheat protection and intelligent cooling system.

Flexible expansion interface

8 pairs of binary inputs (300Vdc wet/dry contacts), 4 pairs of relay outputs (400Vac/4A), compatible with SCADA system integration.

Data management

Stores 1000 sets of test data, supports CSV/PDF format export, and is compatible with analysis software such as LabVIEW.

International reference standards

IEC 60255-1 Basic performance specifications for relays, covering action time, return coefficient and environmental adaptability tests.
IEEE C37.90 anti-electromagnetic interference standard for power equipment ensures stable operation of equipment in strong magnetic field environment.
ISO 9001:2015 production and service quality control system certification ensures equipment consistency and reliability.

Product use

Power system maintenance: verify the action value, response time and harmonic braking characteristics of overcurrent relays and differential protection devices.
Industrial automation: calibrate the signal input/output accuracy and anti-interference ability of PLC control modules and inverters.
New energy field: test the fault ride-through logic and protection mechanism of photovoltaic inverters and energy storage systems.
Laboratory research: simulate dynamic scenarios such as grid frequency fluctuations and voltage sags to verify equipment reliability.

Technical Specifications

Category	Details
Voltage Output	4×300Vac (±0.02%), 3×300Vdc (±0.5%), Auto-ranging (30V/300V), Resolution 1mV, Distortion <0.05%.
Current Output	3×35Aac (±0.03%), 1×105Aac (±0.1%), Auto-ranging (3A/35A), Resolution 1mA, Distortion <0.07%.
Frequency & Phase	0.001Hz~1kHz (Accuracy ±1ppm), Phase -360°~360° (±0.05°), Resolution 0.001°.
DC Power Supply	0-300V/120W Battery Simulator, Accuracy ±0.5%.
I/O Interface	8 Isolated Binary Inputs (300Vdc Wet/Dry Contact, Time Error ±1ms); 4 Relay Outputs (400Vac/4A, Response Time 100μs, Power Capacity 1000VA).
Synchronization	GPS External Sync (Optional, Error <1ms); RJ45 Ethernet, RS485 (Supports Modbus Protocol).
Power & Environment	85-264Vac Input, Power Consumption ≤1500VA, Operating Temperature -10°C~55°C, Humidity <95%RH (Non-condensing).
Physical Spec	360×450×140mm, 20.5kg, Portable Design.
