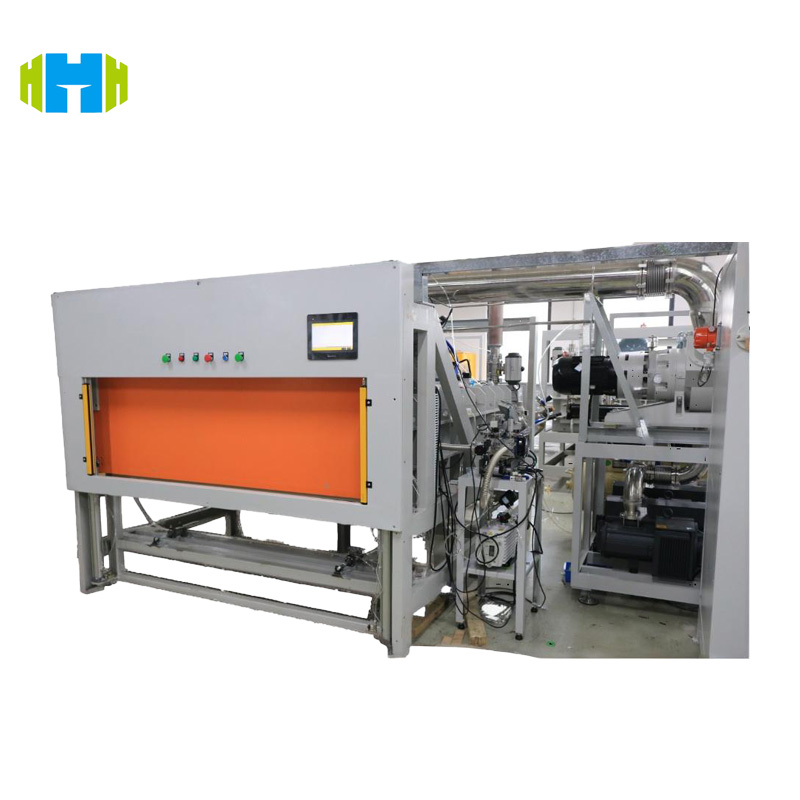

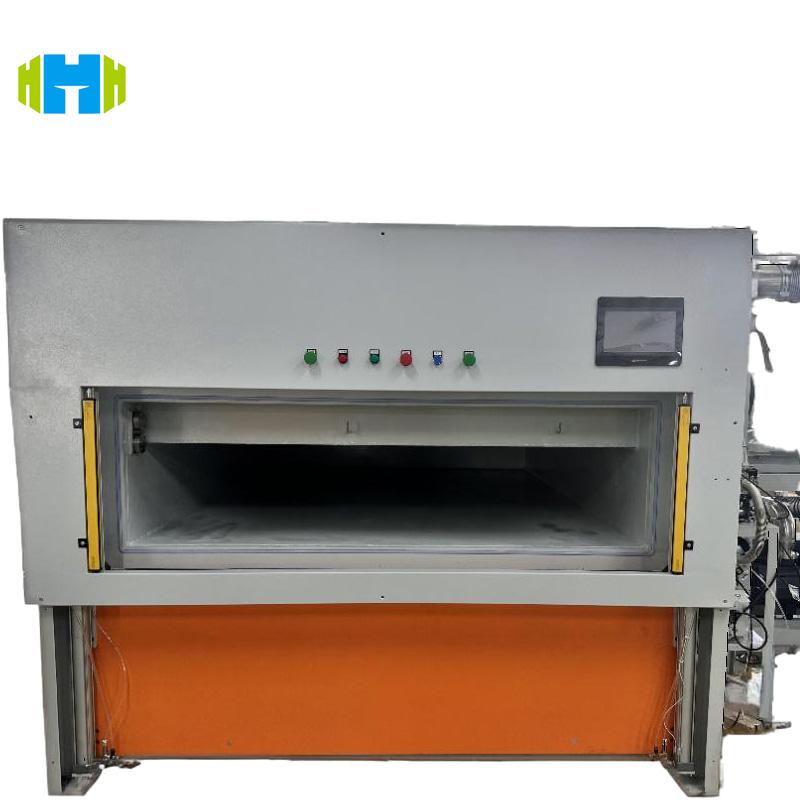

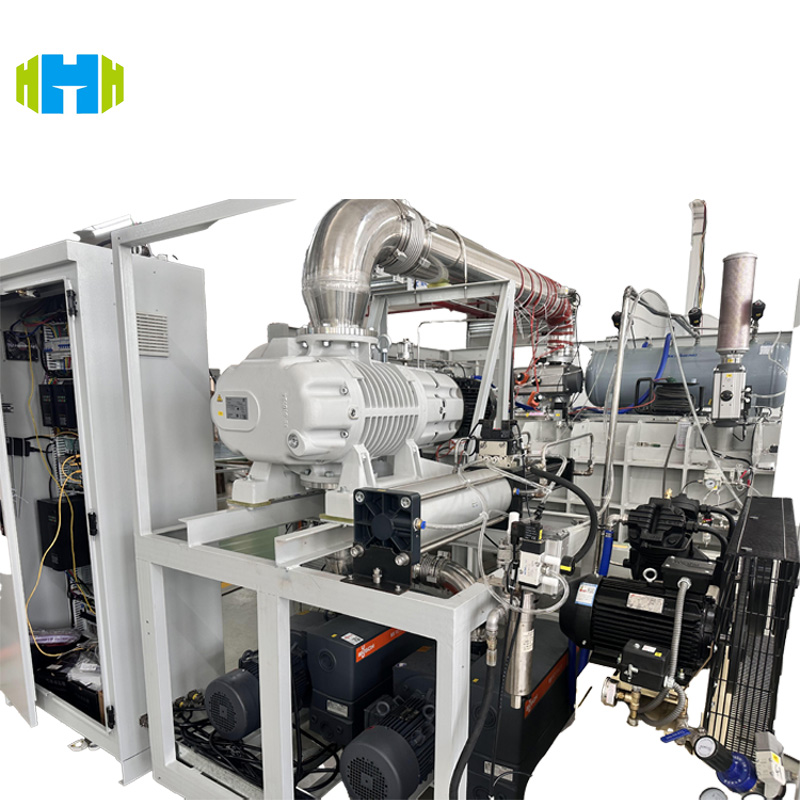

This helium leak detection device is specifically designed for new energy vehicle direct cooling plates. It offers accurate leakage detection and efficient operation, ensuring the quality and performance of direct cooling plates.
Item No. :
HJ-APAT-008Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C,T/T,PayPalPrice :
NegotiatableProduct Origin :
TurkiyeSupply Ability :
1 sets per 2 monthLead Time :
60 Working DaysConventional packaging :
Plywood
Key Parameters
|
Parameter |
Value |
|
Application |
New energy vehicle direct cooling plate airtightness inspection |
|
Detection Principle |
Utilizes helium to detect leaks. After charging helium into the workpiece, the device uses a helium mass spectrometer to detect leaked helium in the vacuum environment. |
|
Workpiece Compatibility |
EB/EA workpieces (max volume: 3.2L) |
|
Alarm Leak Rate |
< 1×10⁻¹⁰ mbar·L/s |
|
Production Cycle |
EB: 180 s/PCS (including 70 s for loading and unloading); EA: 180 s/2PCS (including 70 s for loading and unloading) |
|
Vacuum Chamber Quantity |
1 |
|
Vacuum Chamber Size |
Suitable for EB (1 piece) and EA (1 - 2 pieces) |
|
Helium Charging Pressure |
0 - 4 Mpa (adjustable) |
|
Helium Recovery Rate |
> 98% |
|
OEE (Overall Equipment Effectiveness) |
> 99% |
|
Noise Level |
≤ 70 dB (at 1 - meter distance) |
|
CMK (Machine Capability Index) |
> 1.8 |
The device features a user - friendly interface, with functions like automatic/manual code - scanning and easy - to - operate controls. It also has strong safety measures, including safety gratings, leakage - proof electrical designs, and emergency stop buttons.
During the 1 - year warranty period, we provide free technical support and quick - response maintenance. Even after the warranty, we ensure the continuous supply of high - quality spare parts at reasonable prices.
With its high - precision detection, efficient production cycle, and excellent after - sales service, our new energy vehicle direct cooling plate helium leak detection device is the perfect choice for enhancing product quality and production efficiency in your manufacturing process.
