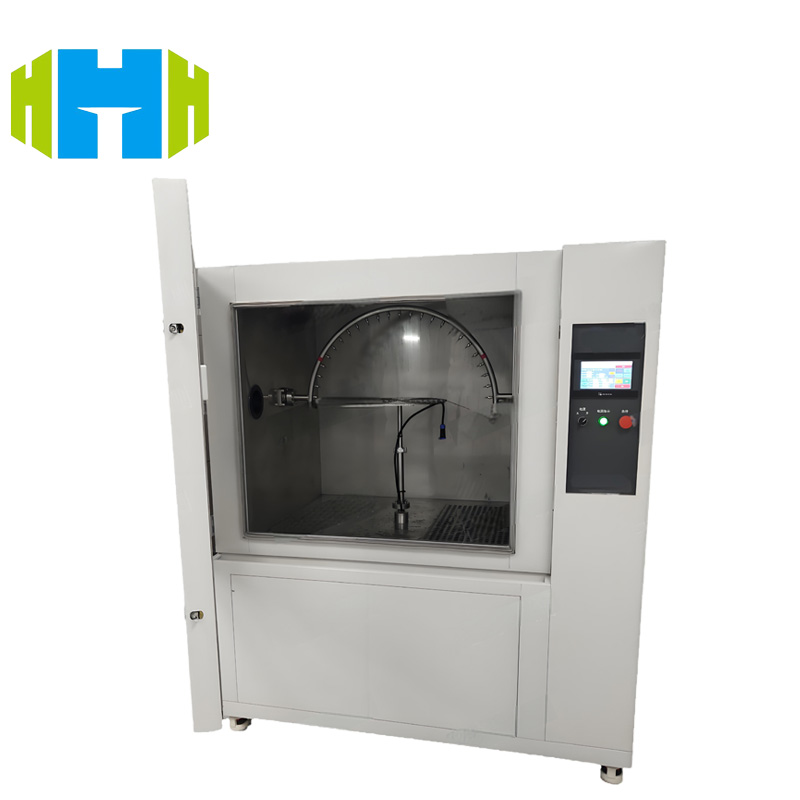

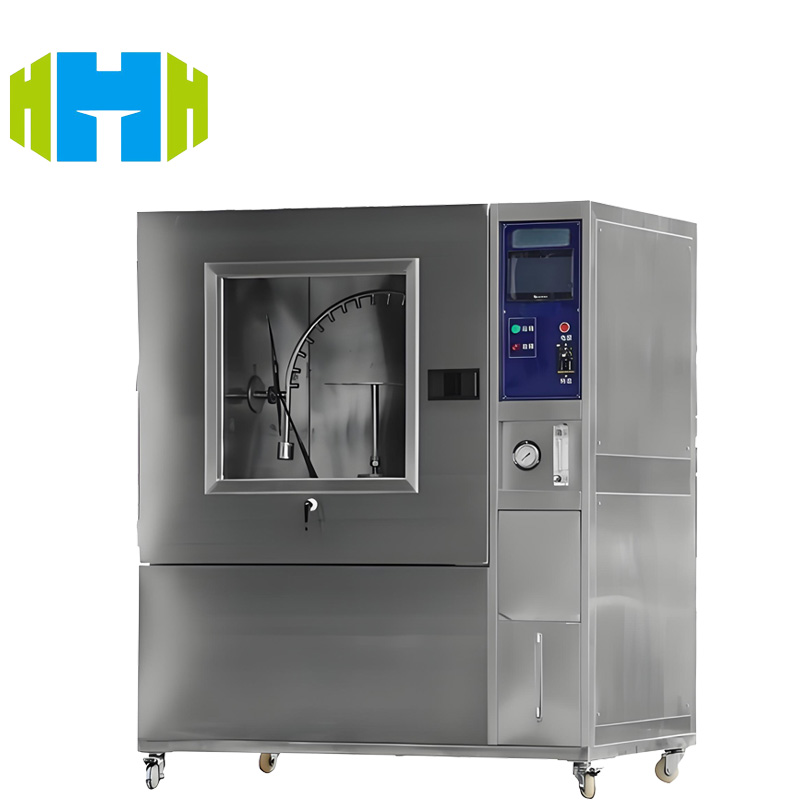

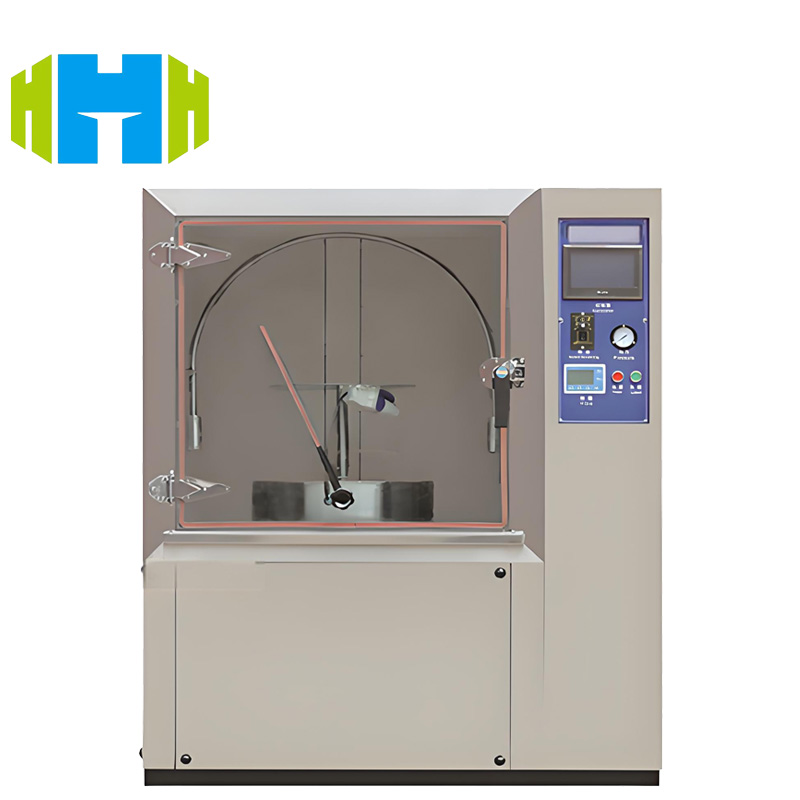

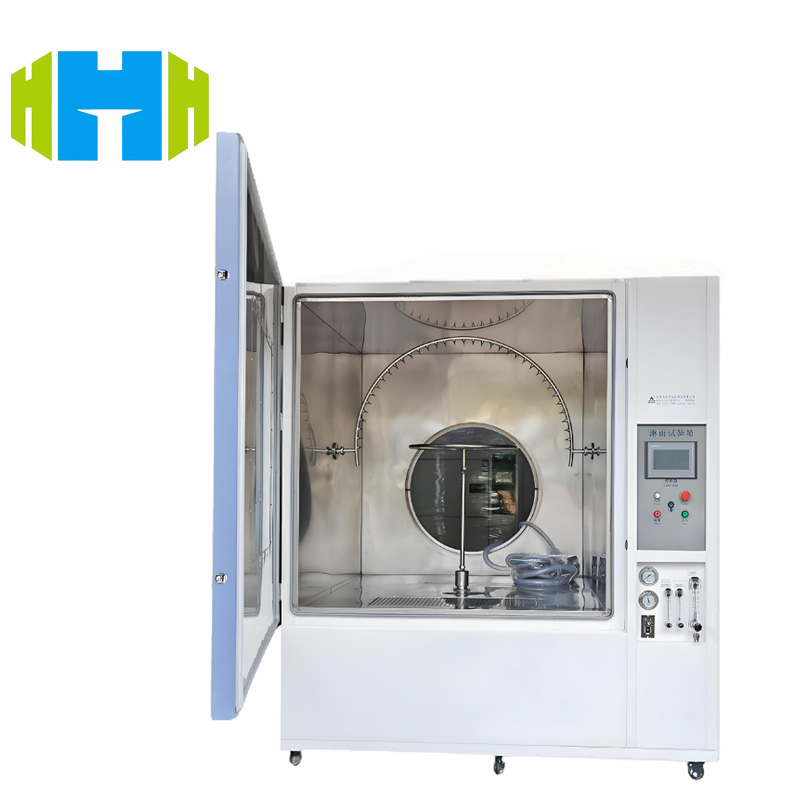

A rain test chamber is a crucial piece of equipment in industrial electrical performance testing, specifically designed to assess the waterproof performance of various products. By simulating rain conditions, it ensures that electronic devices and appliances can withstand exposure to water without sustaining damage or malfunction.
Item No. :
HJ-IEPTE-017Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C,T/T,PayPalPrice :
NegotiatableProduct Origin :
TurkiyeSupply Ability :
1 sets per 2 monthLead Time :
60 Working DaysConventional packaging :
PlywoodRain Test Chamber: A Brief Introduction and Specification Table
Below is detailing some key parameters of a typical rain test chamber:
|
Specification |
Description |
|
Device Model |
(e.g., IPX56 Rain Test Chamber) |
|
Outer Dimensions |
Approx. Length 3800mm x Depth 980mm x Height 1750mm (including a 2450mm-long water conduit) |
|
Inner Chamber Dimensions |
Length 800mm x Depth 800mm x Height 800mm |
|
Water Storage Tank Capacity |
Approx. 100L, Dimensions: 500mm x 450mm x 450mm |
|
Sample Turntable Size |
Diameter 600mm |
|
Nozzle Aperture |
IPX5: 6.3mm diameter; IPX6: 12.5mm diameter |
|
Water Spray Flow Rate |
IPX5: 12.5 ± 0.625 L/min; IPX6: 100 ± 5 L/min |
|
Flow Control Method |
Manual Adjustment (Rotameter) |
|
Control System |
7-inch Touchscreen + PLC |
|
Test Sample Power Supply |
220V |
|
Additional Features |
- Adjustable spray distance and angle |
Outer and Inner Dimensions: Define the physical size of the test chamber, allowing users to accommodate different-sized products.
Water Storage Tank Capacity: Ensures a sufficient supply of water for prolonged testing sessions.
Sample Turntable: Allows for the rotation of test samples, ensuring uniform exposure to water spray.
Nozzle Aperture and Water Spray Flow Rate: Determine the intensity and distribution of the water spray, simulating various rain conditions.
Flow Control Method: Provides precision in adjusting the spray rate, tailored to specific test requirements.
Control System: Utilizes PLC and a touchscreen interface for intuitive operation and monitoring.
Test Sample Power Supply: Ensures that electrical products can be powered during testing, if necessary.
The rain test chamber is equipped with a water recycling system, promoting environmental sustainability by reducing water wastage.
High-quality stainless steel construction ensures durability and resistance to corrosion, extending the lifespan of the equipment.
Customizable specifications are available to meet specific testing needs, including variations in size, spray intensity, and control systems.
In conclusion, a rain test chamber is a vital tool for assessing the waterproof performance of industrial electrical products. With its precise control systems, adjustable spray parameters, and durable construction, it provides reliable and consistent test results, ensuring that electronic devices can withstand real-world water exposure conditions.
