Iec61701 Salt Spray Test Chamber Automotive Parts Testing Equipment
Product Introduction
AM0046 Auto Parts Salt Spray Test Chamber is a professional Auto Parts Test Equipment, which is used to simulate the salty atmosphere and conduct salt spray corrosion tests on auto parts. By setting different severity levels and test steps (such as humidity, salt spray, dryness, etc.), the corrosion resistance of auto parts in salt spray environment is evaluated, providing important data support for the quality control and R&D of auto parts.
Product Features
- Precise environmental simulation: The temperature control range is RT + 5℃~60℃, the fluctuation is ±0.5℃ (no load), and the uniformity is 2℃ (no load); the humidity range is 30%~98% RH, which can accurately simulate different temperature and humidity environments.
- Stable salt spray precipitation: The salt spray precipitation is stable at 1~2ml/80 cm².mean h (16 hours), ensuring the accuracy and repeatability of the test results.
- Multiple test methods: Supports multiple test methods such as NSS, AASS, CASS, etc. to meet different test needs.
- High-quality materials: The box body is made of PP reinforced hard plastic plate or 316 stainless steel, the box cover is PP reinforced hard plastic plate, and the saturated barrel is made of imported SUS304 stainless steel, which is corrosion-resistant and has a long service life.
- Safe and reliable: It has multiple safety protection functions such as overtemperature, equipment phase sequence/reverse phase, equipment timing, fast defogging indication, water level protection, leakage short circuit, compressor overheating and overpressure.
International Reference Standards
- GB-T10587-2006: Technical Conditions for Salt Spray Test Chambers, specifies the technical requirements and test methods for salt spray test chambers.
- GBT 18912-2002: Photovoltaic Module Salt Spray Corrosion Test Standard, provides relevant corrosion test specifications.
- GBT 2423.33-2005, GBT 2423.18-2000, GBT 2423.17-2008: Environmental Test Standards for Electrical and Electronic Products, involving test requirements under different environmental conditions.
- IEC 68-2-52: Corrosion Test Standard, provides international specifications for salt spray corrosion testing.
- IEC 60068-2-11: 1981: Basic Environmental Test Procedure, specifies the relevant requirements for salt spray testing.
Product Use
Applicable to automotive parts or equipment that are expected to withstand salty atmospheres. By simulating a salt spray environment, the corrosion resistance of the product is tested and the durability and reliability of the product in actual use are evaluated. It is widely used in automotive parts production, quality inspection and R&D.
Test objects
The main test objects are various types of automotive parts, including but not limited to metal parts (such as engine parts, body parts), plastic parts (such as interior parts, exterior parts), rubber parts (such as seals, tires), etc.
Test items
- Salt spray corrosion test: By simulating salt spray of different concentrations and environments, the corrosion of the surface of automotive parts is tested to evaluate their corrosion resistance.
- Moisture resistance test: In a high humidity environment, test whether the parts have problems such as deformation, mold, and electrical performance degradation.
- Performance test after drying: Observe the appearance, size changes and function of the parts after drying, and comprehensively evaluate their durability and reliability in a salt spray environment.
Parameters:
| Unit type |
Studio Dimensions (D * W * H) mm |
Exterior size (D * W * H) mm |
| AM0046-108-RFHY |
450×600×400 |
Refer to the three view drawing of the contract Auto Parts Test Equipment |
| AM0046-270-RFHY |
600×900×500 |
| AM0046-412-RFHY |
750×1100×500 |
| AM0046-663-RFHY |
850×1300×600 |
| AM0046-816-RFHY |
850×1300×600 |
| AM0046-1080-RFHY |
900×2000×600 |
Performance index |
Temperature range |
RT+5℃～60℃ |
| Humidity range |
30%～98% RH |
| Saturating bucket temperature |
RT+10℃～70℃ |
| Temperature uniformity |
2℃ (on empty load) |
| Temperature fluctuation |
± 0.5℃ (on no-load) |
| Salt fog settlement |
1～2ml/80 cm².mean h (16 hours) |
| Heating rate |
0.5℃～1.5℃/min |
| Cooling rate |
0.5℃～1.0℃/min |
| Compress air pressure |
2.00±0.01(kg/cm²) |
| Spray method |
Continuous / periodic selection is optional |
| Test frame Angle |
Can meet the 15 °, 30 ° tilt test |
| Experimental method |
NSS test AASS test CASS test |
Used
Material |
Box material |
PP enhanced hard plastic plate or 316 stainless steel |
| Box cover material |
PP enhanced hard plastic plate or 316 stainless steel |

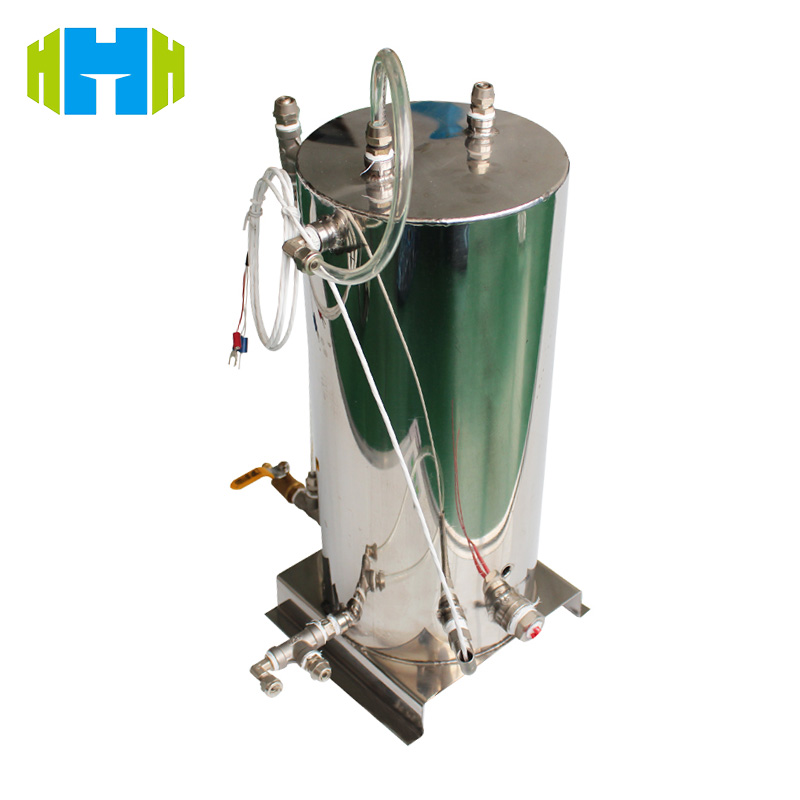

| Air saturated bucket |
Import advanced stainless steel SUS304 |
| Pressurized air tube material |
High quality rubber pipe |
| Other pipes |
Reinforced fluorosilicone rubber tube |
The core configuration |
Temperature controller |
Japan the original imported "UNIQUE" brand temperature and humidity instrument |
| Removal of wet and cooling |
Single machine or double machine cascade refrigeration |
| Temperature sensor |
PT100 Platinum resistance thermometers |
| Pressure, shrink, machine |
Tecumseh, France |
| Heating pipe |

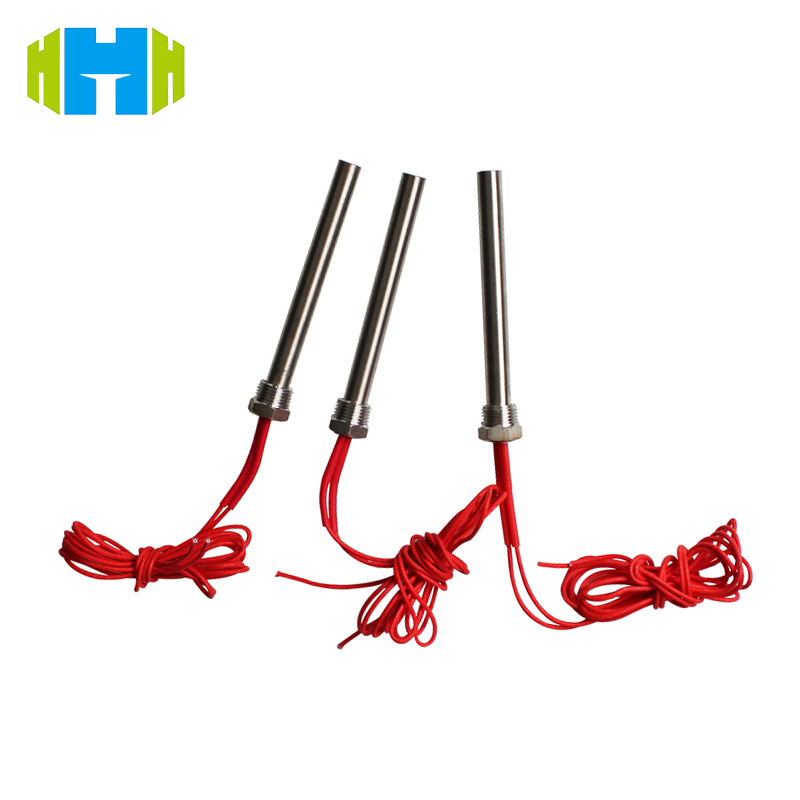

Titanium alloy heating pipe |
| Circuit breaker |
Schneider small circuit breaker (prevent short circuit to control circuit) |
| Standard layout |

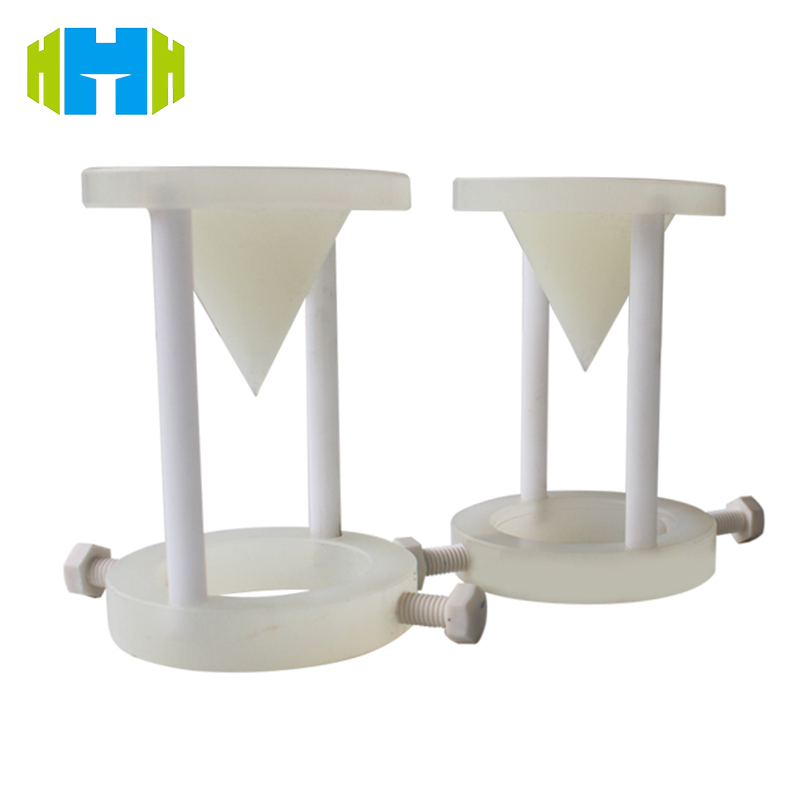

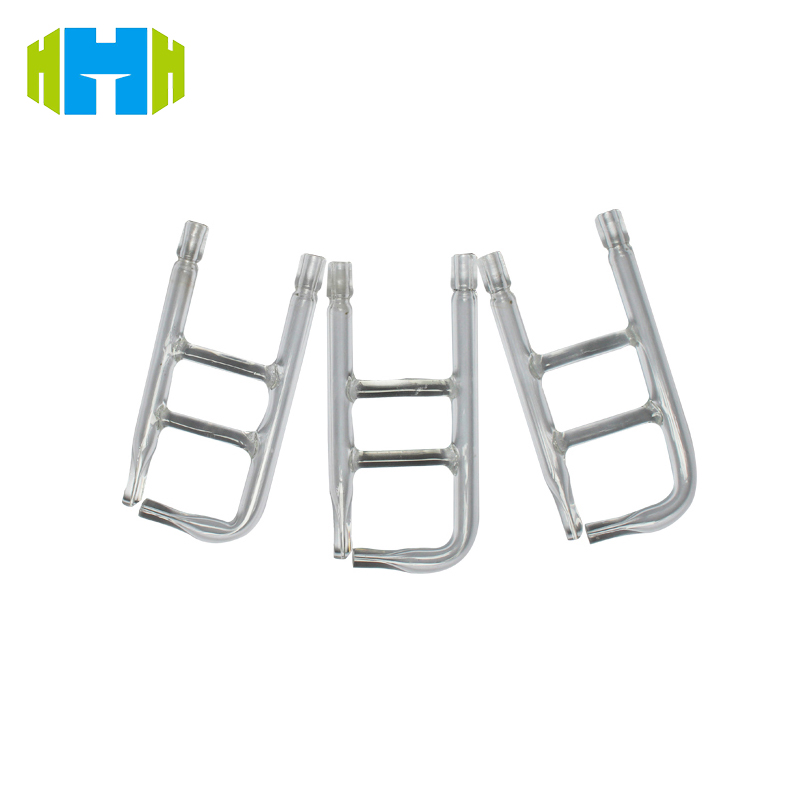

V sample rack, round rod, nozzle, funnel, metering tube and Salt mist exhaust pipe |
| Security guard |
Excessive temperature, overall equipment phase / reverse phase, overall equipment timing, end of rapid fog discharge indication test, low water level protection, leakage, short circuit,
Compressor overheating and compressor overpressure |
| Supply voltage |
AC380V±10% 50Hz |
| Power |
8.5KW/10.0KW/12.0KW/13.5KW/15.0KW/17.5KW |
| Service environment |
5℃～＋28℃ ≤85% RH |
Note:
Data were measured at an ambient temperature of 25℃ and under well ventilated conditions
The above parameters are for reference only, and can be customized according to the user's specific test parameters
This Technical information is subject to change without notice |
