This probe conforms to the IEC60335-2-11 figure 104 and IEC60335-2-6-2002 figure 104 standard requirements. It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of drum-type dryer, upright electric cooker, cooking bench and oven.
Item No. :
HT-I32Minimum Order Quantity (MOQ) :
1 setPayment Method :
T/TPrice :
NegotiatableProduct Origin :
ChinaSupply Ability :
100 set/ monthLead Time :
7 DaysConventional packaging :

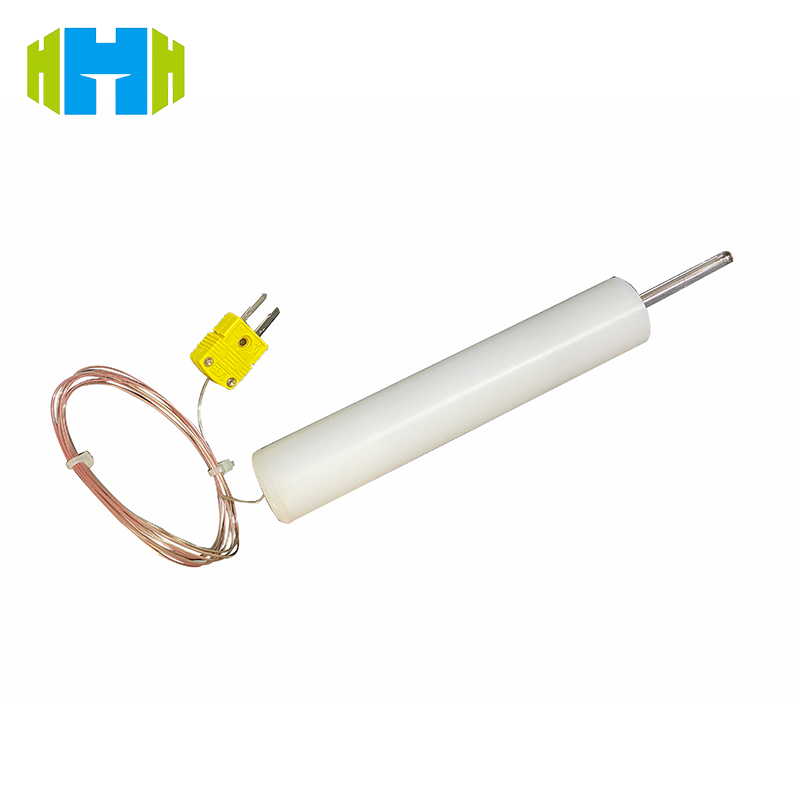

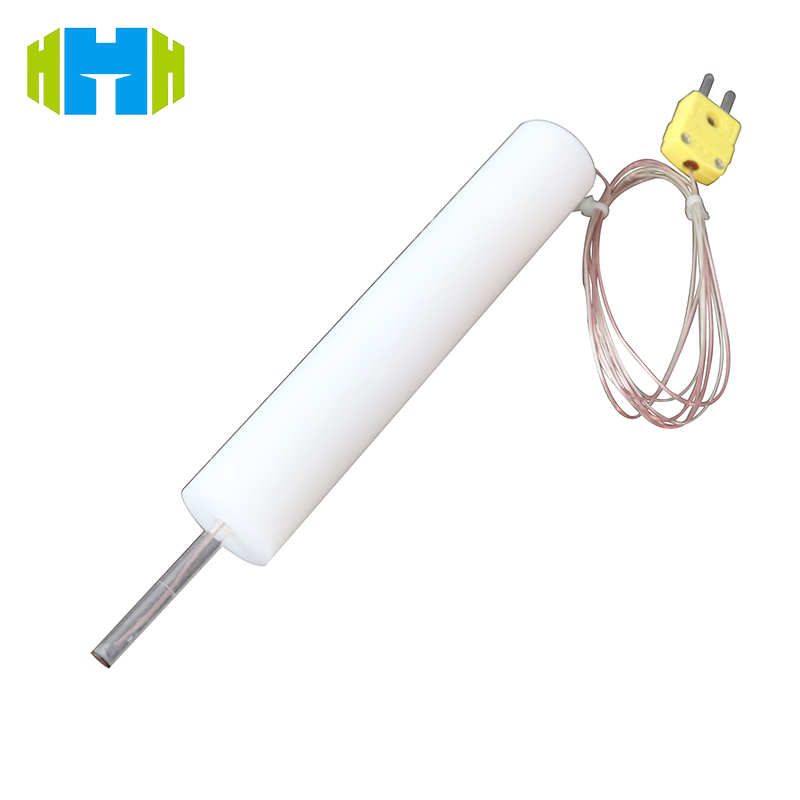

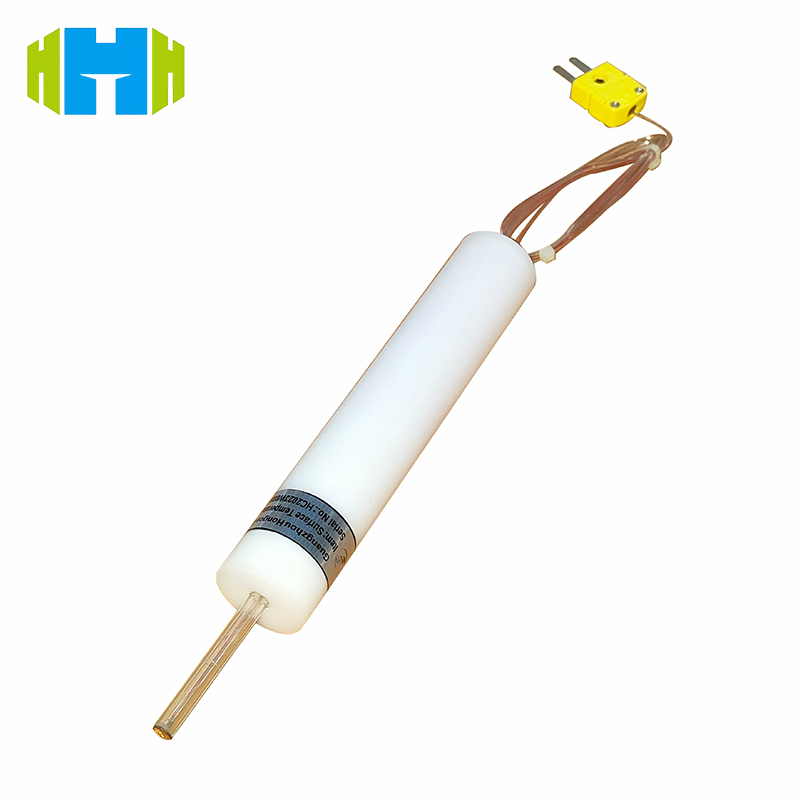

Aluminum BoxIEC60335-2-11 Figure 104 Test Finger Probe Surface Temperature Probe
Standard:IEC60335-2-11 figure 101 and IEC60335-2-6-2002 figure 101.
Application:It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of drum-type dryer, upright electric cooker, cooking bench and oven.
Test sample:Drum-type dryer, upright electric cooker, cooking bench and oven.
Feature:Hand held exterior temperature measurement.
Technical parameters:
|
Parameters /Model |
HT-I32 |
|
Plane of measurement |

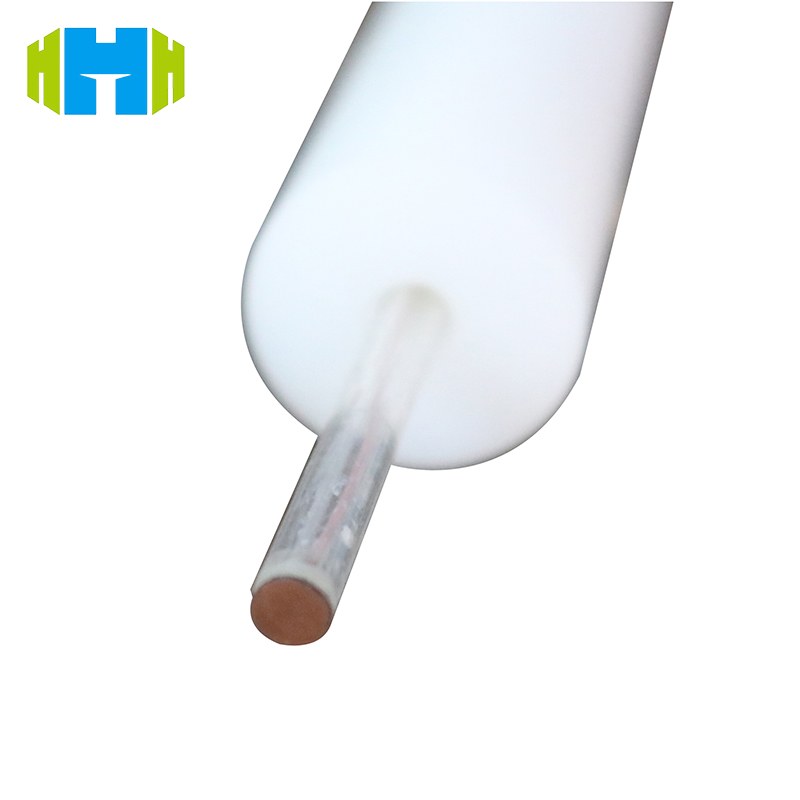

Φ5*0.5mm tin copper plate |
|
Drive pipe |
Inner Φ3,outer Φ5 |
|
Thermocouple |
Φ0.3K type |
|
Force |
4±0.5 N |
