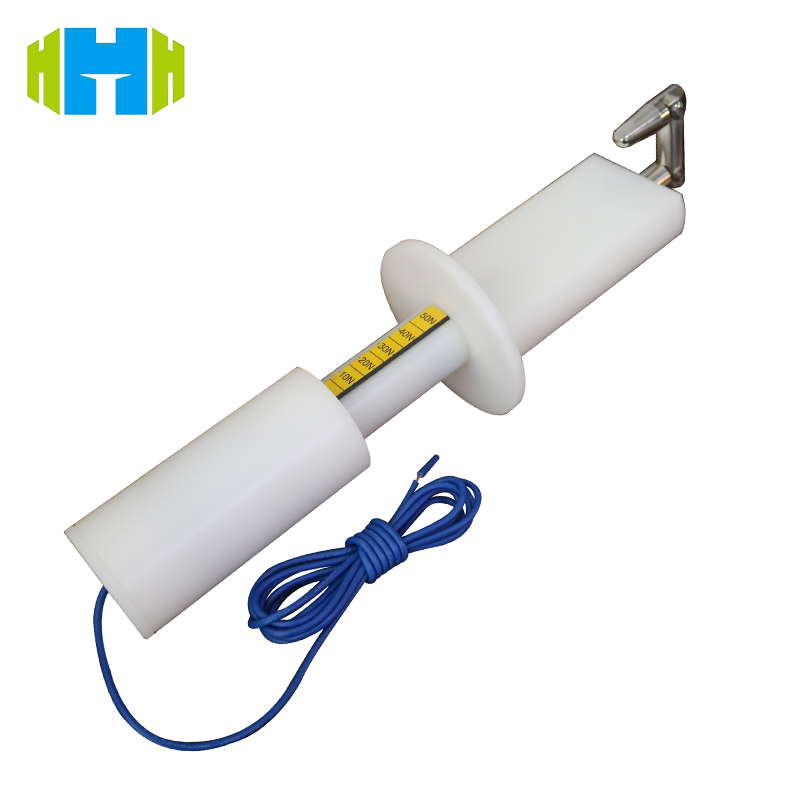

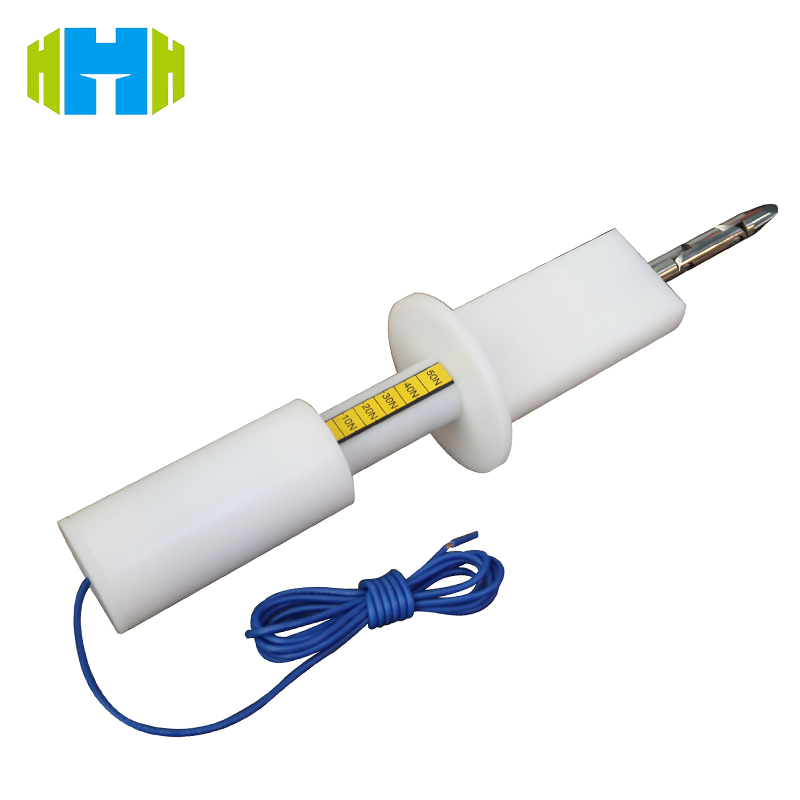

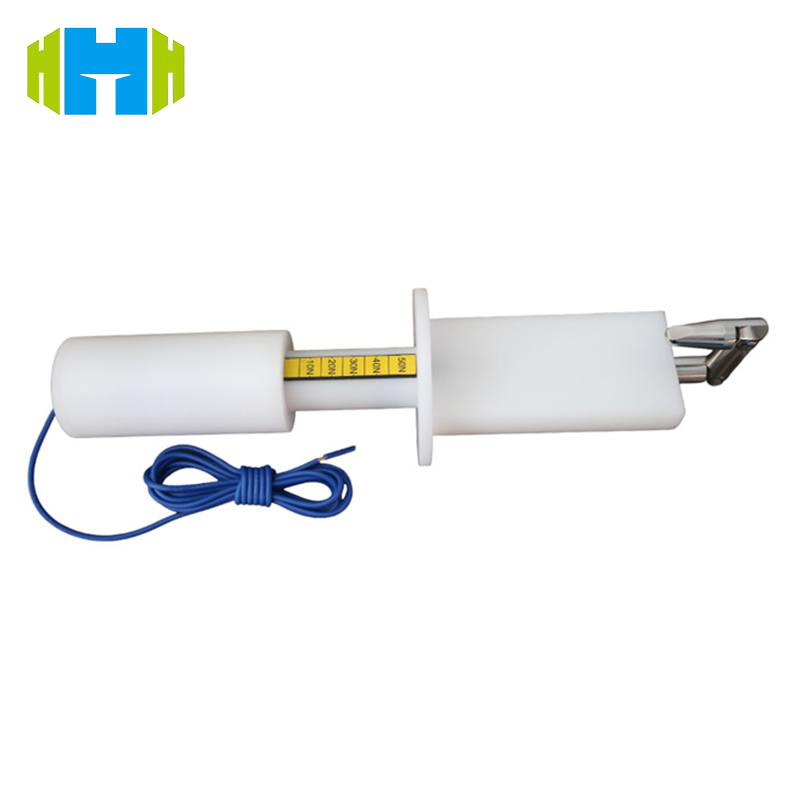

IEC 61032 Test Finger Probe Force Of 75 N , Standard Test Finger With Force

The Test Finger Probe B is a precision test probe made according to Figure 2 (Fig. 2) of the IEC61032 (Test probe B) and is used to simulate a human finger. It is also used by the standards of CSA, IRAM, UL and in most of the rules involved in the verification of accessibility to live parts.

  • Item No. :

    HT-I02T
  • Minimum Order Quantity (MOQ) :

    1 set
  • Payment Method :

    T/T
  • Price :

    Negotiatable
  • Product Origin :

    China
  • Supply Ability :

    30 sets per month
  • Lead Time :

    5 days
  • Conventional packaging :

    Carton box

IEC 61032 Test Finger Probe Force Of 75 N , Standard Test Finger With Force





Product information:

  • This is a precision test finger made in accordance with many standards like IEC 61032 figure 2,  IEC60950 figure 2A,IEC60884,IEC60335,UL507,and UL1278 figure 8.4. This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.
  • Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle , or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).

Technical parameters:

Parameters /Model HT-I02T
Name Standard test finger with force
1 30±0.2
2 60±0.2
3 80±0.2
4 180±0.2
5 R2±0.05
6 S4±0.05
7 37o 0 -10’
8 14 o 0 -10’
9 Ф12 0 -0.05
10 Ф50
11 20±0.2
12 Ф75±0.2
13 5±0.5
14 5~75N with minimum resolution of 5N
15 IEC60529
