IEC 60480 SF6 Recovery Equipment ≤10Pa Recovery Rate 7m³/h SF6 Testing Equipment

Product Introduction

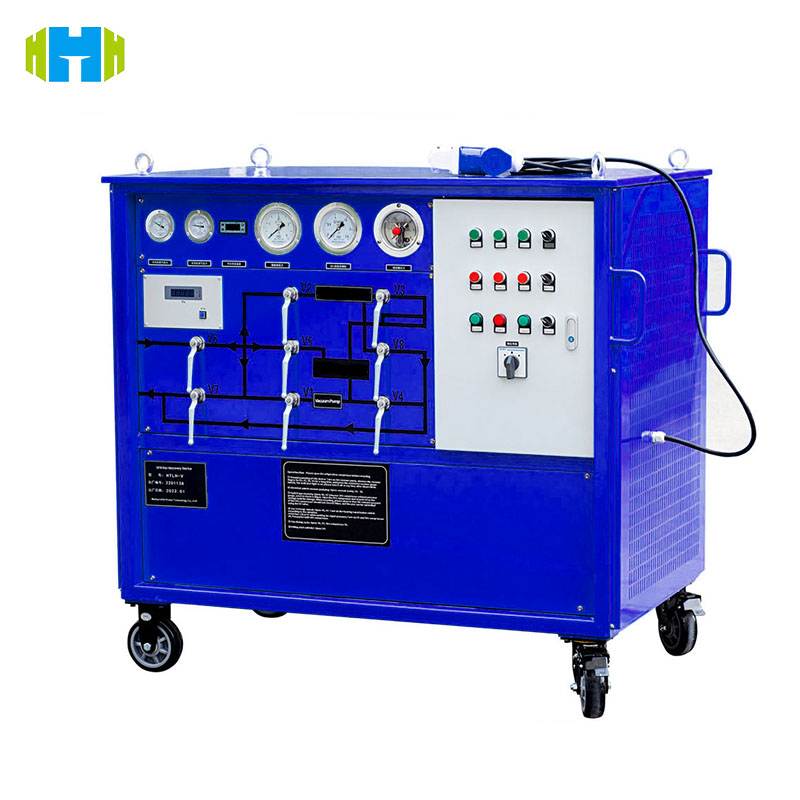

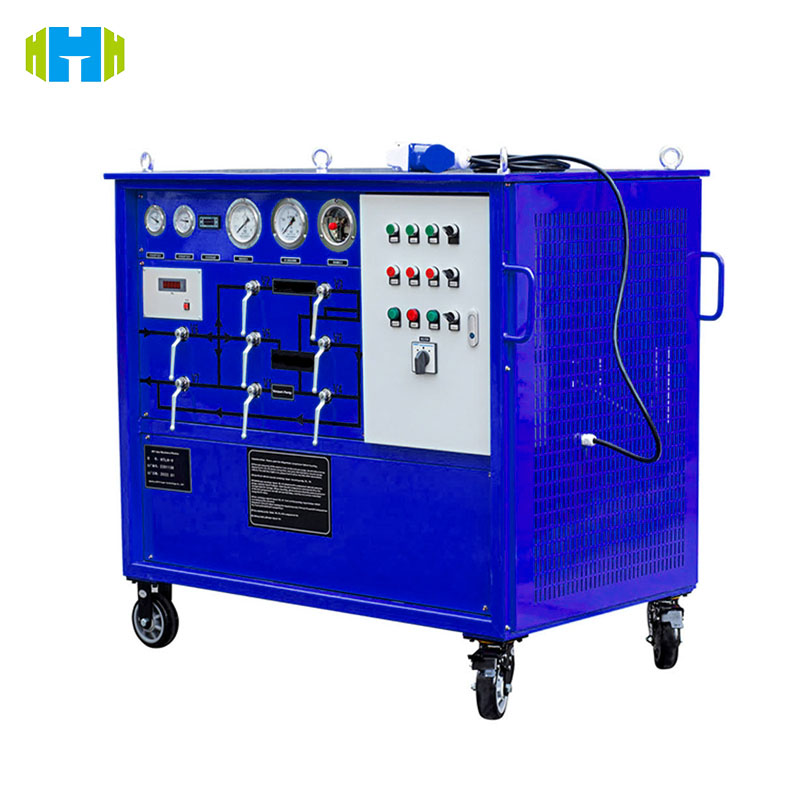

The SF6T-005 is a fully automatic gas treatment system designed specifically for high-voltage electrical equipment, integrating recovery, filling, purification, and storage functions. It utilizes triple-layer American Hanson filtration technology and a built-in desiccant heating and regeneration system to ensure a SF6 gas recycling rate of ≥99.9%.

Core Applications

• Recovers waste SF6 gas (final pressure ≤ 50kPa)
• Evacuates and fills equipment such as GIS and circuit breakers (ultimate vacuum ≤ 10Pa)
• Removes moisture (≤ 60ppm), oil (≤ 10ppm), and toxic decomposition products

Product Highlights

✅ High-efficiency purification

• 0.02μm precision filtration + acid value control (pH 0.1), compliant with IEC 60480 recovered gas standards

✅ Industrial-grade reliability

• French Manurop compressor + bipolar vacuum pump (15m³/h pumping speed)
• 5,000-hour mean time between failures (MTBF)

✅ Intelligent O&M

• Phase self-calibration + solenoid valve power-off protection
• Air cooling system (normal operation at -20°C)

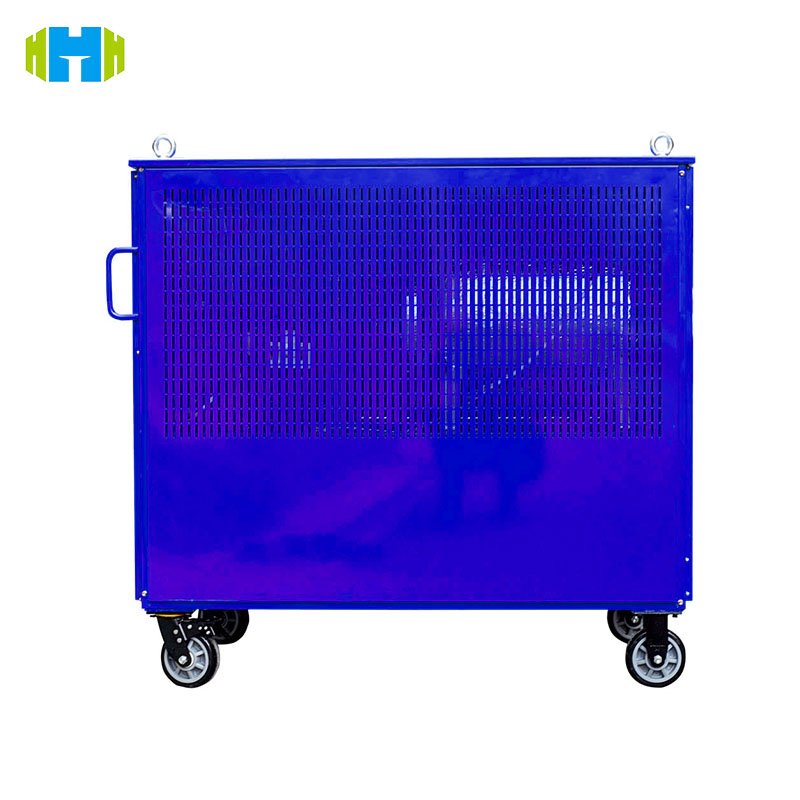

✅ Easy mobility

• Hand-trolley design (1450×810×1200mm/545kg)
• Reinforced casters + carbon steel storage tank (50L capacity)

International Standards Compliance

Technical Specifications

*MTBF: Mean Time Between Failures. All valves feature spiral self-sealing technology (100,000 cycles zero-leakage certified).*
