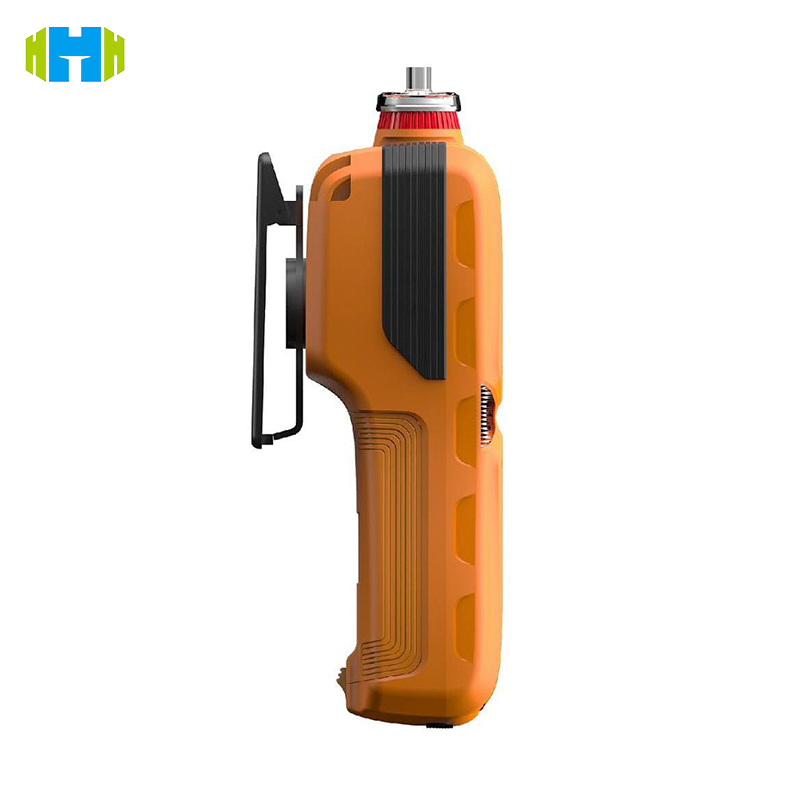

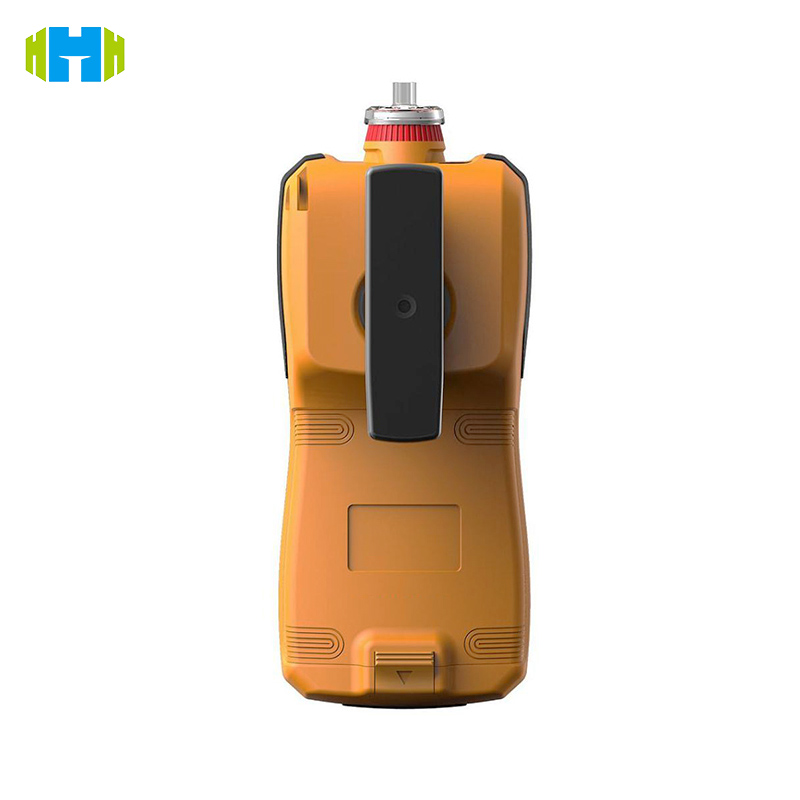

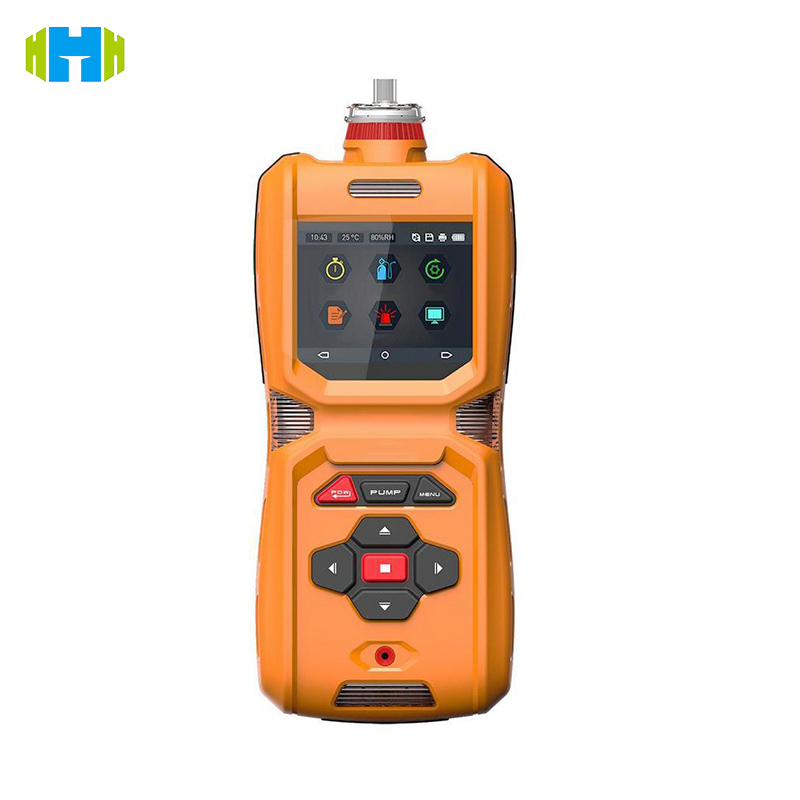

The SF6T-006 is an intrinsically safe multi-gas detector that uses pump-type sampling and supports simultaneous detection of 6-8 gases. It features a 2.5-inch color screen and 100,000 data records, making it suitable for extreme environments (-40°C to 70°C). It is used for rapid SF6 leak location (resolution 0.001ppm), high-temperature flue gas detection, and safety monitoring in the petroleum, chemical, and power industries.
Item No. :
SF6T-006Minimum Order Quantity (MOQ) :
1 setPayment Method :
T/T,L/C,PaypalPrice :
NegotiatableProduct Origin :
Türkiye,ChinaSupply Ability :
30 set /monthLead Time :
30 daysConventional packaging :
Plywood
✅ Military-grade protection
✅ Intelligent multi-gas platform
✅ Ultra-fast response and battery life
✅ Full-scenario connectivity
| Standard | Clause Requirement | Compliance Status |
| IEC 60079-11 | Intrinsic Safety Requirements | Certified Exia II CT4 |
| IEC 61779-1 | Gas Detection Accuracy | ≤±1% F.S (Full Scale) |
| ISO 6142 | Gas Calibration Traceability | Multi-point Calibration + Auto Zeroing |
| IEC 60529 | Ingress Protection (IP Code) |
IP67 (Dust/Immersion Proof) |
| Detection Performance | Specification | Design Features | Specification |
| Gas Sensing | Protection | ||
| SF6 Range | 0-100/1000/3000 ppm (Selectable) | Explosion Proof | Exia II CT4 |
| Resolution | 0.001ppm (0-10ppm range) | IP Rating | IP67 (1m/30min Waterproof) |
| Accuracy | ≤±1% F.S | Display/Interface | |
| Response Time (T90) | ≤20 sec | Screen | 2.5" Color LCD (320×240) |
| Multi-Gas Capability | Data Logging | 100,000 pts + SD Card (Optional) | |
| Simultaneous Gases | 6-8 gases (SF6/O2/Combustible/etc.) | Environmental | |
| Sensor Technologies | EC/IR/PID/Catalytic Bead | Operating Temp | -40℃ to +70℃ |
| Sensor Life | IR: 5-10y ∙ EC: 2-3y | Max. Sample Temp (Optional) | 1300℃ (Cooling Probe) |
| Advanced Functions | Power | ||
| Temp/Humidity (Optional) | -40~70℃ (±0.3℃) / 0-100%RH (±2%RH) | Battery | 6000mAh Polymer Li-ion |
| Sampling Distance | >10m (Extendable Probe) | Charging | USB-C (Power Bank Compatible) |
| Dimensions/Weight | 195×77×46mm / 350g | Continuous Operation | >48 hour |
