High-Performance Water Pump and Valve Durability Test Bench

HCLPT-005, manufactured by HongCe Company, is a high-performance testing device specifically designed for testing automotive coolant pumps and valves. It not only accurately simulates various conditions that may occur in vehicles but also features environmental simulation and precise coolant regulation capabilities, ensuring the accuracy and reliability of tests.

Item No. :
HCLPT-005
Minimum Order Quantity (MOQ) :
1 Set
Payment Method :
T/T,L/C
Price :
Negotiatable
Product Origin :
China/Türkiye
Supply Ability :
1 sets per 2 months
Lead Time :
60 days
Conventional packaging :
Plywood

Inquiry now

Product Details

High-Performance Water Pump and Valve Durability Test Bench

Product Introduction

In the automotive industry, the performance of pumps and valves directly affects the cooling efficiency and overall performance of vehicles. HongCe's Pump and Valve Durability Testing Equipment (HCLPT-005) is designed to meet this need. This equipment can simulate extreme temperature and pressure conditions, ensuring precise testing under various environments. Its compact design and easy operation make it an ideal choice for automotive manufacturers and testing laboratories.

Product Features

Separate Fluid and Environmental Control: Precisely simulates various conditions in vehicles.
Testing Duration Up to 12,000 Hours: Ensures long-term stability and reliability.
Fast and Accurate Data Acquisition: For both manual and automatic testing procedures of hydraulic and electrical parameters of test samples.

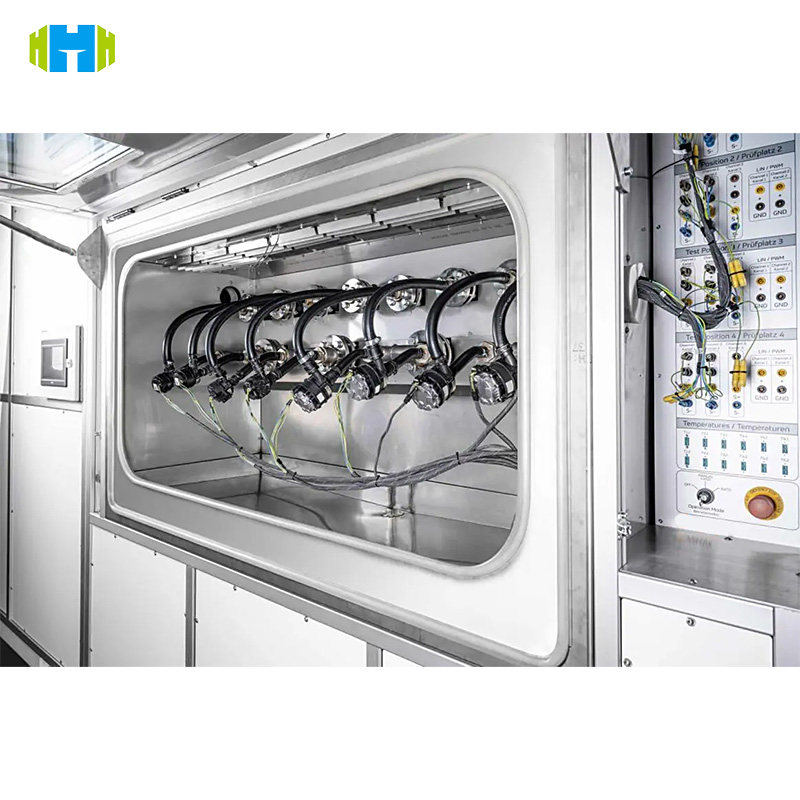

Compact Design: Comprises a custom stainless steel temperature control box, medium regulation device, and two control cabinets.
Four Hydraulic Test Circuits: Capable of testing up to eight samples simultaneously.

International Reference Standards

ISO 9001: Quality Management System Requirements.
IEC 60068-2-1: Environmental Testing - Part 2-1: Test Methods - Test A: Low Temperature.
IEC 60068-2-2: Environmental Testing - Part 2-2: Test Methods - Test B: High Temperature.
IEC 60068-2-78: Environmental Testing - Part 2-78: Test Methods - Test Ab: Temperature Change.

Product Usage

Automotive Coolant Pump and Valve Testing: Simulates various conditions in vehicles.
Environmental Simulation: Tests the performance of samples under extreme temperature and pressure conditions.
Coolant Regulation: Ensures the accuracy and reliability of tests.

Technical Specifications

Parameter	Description
Chamber Minimum Temperature	-40°C
Chamber Maximum Temperature	+150°C
Temperature Accuracy	< 1K (Static State)
Cooling Rate	3K/min
Heating Rate	3K/min
Medium	Water/Glycol
Minimum Temperature	-40°C
Maximum Temperature	+150°C
Temperature Accuracy	< 1K (Static State)
Cooling Rate	3K/min
Heating Rate	3K/min
Integrated System	Customer's Higher-Level Control System
Control Interface	LIN and PWM
