High And Low Temperature Test Chamber -70℃~150℃ LEC60068 Compliant

High And Low Temperature Test Chamber -70℃~150℃ LEC60068 Compliant

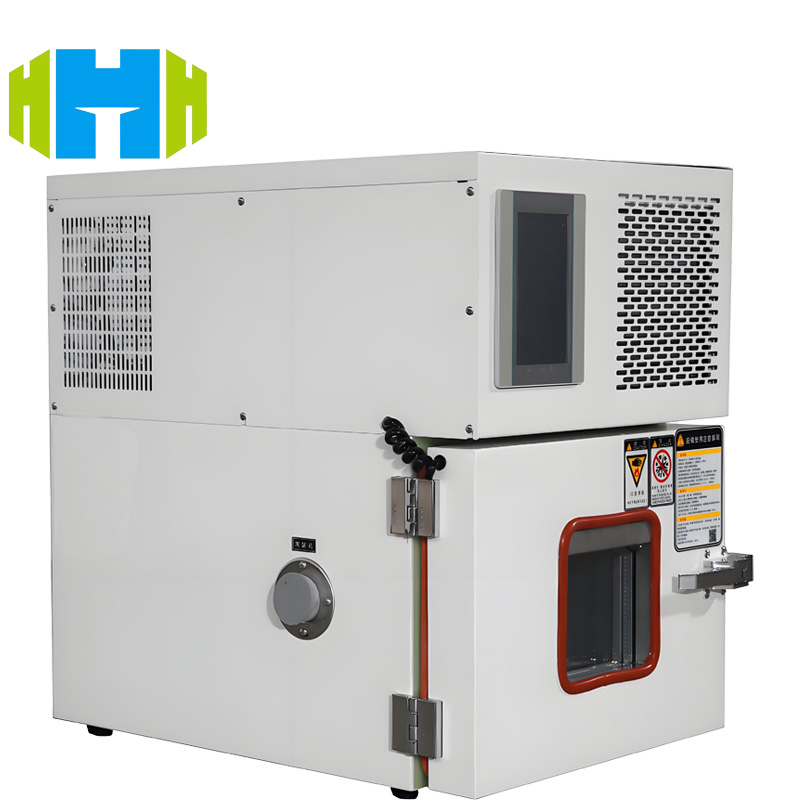

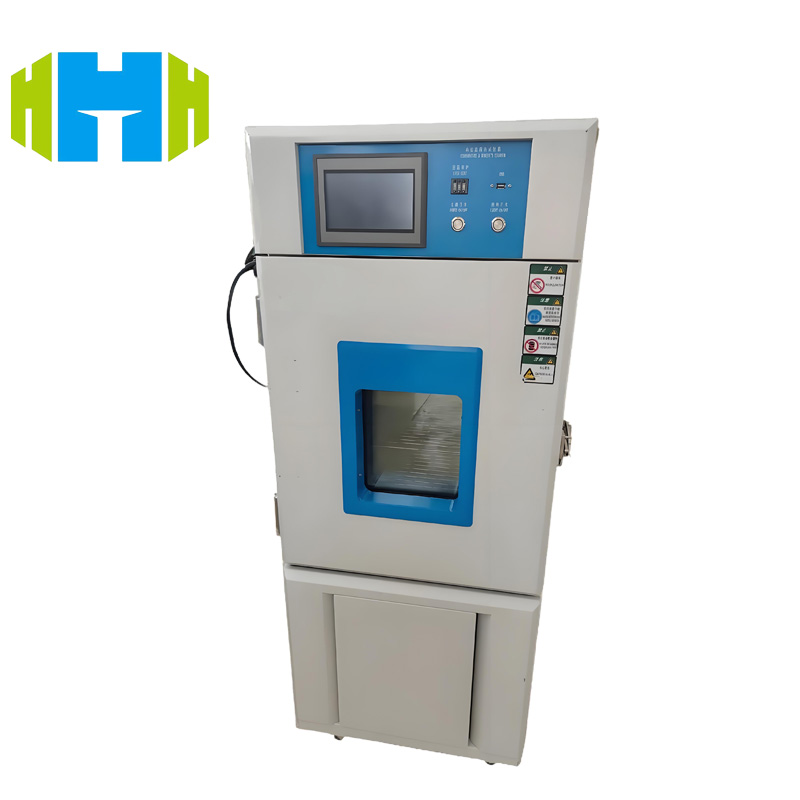

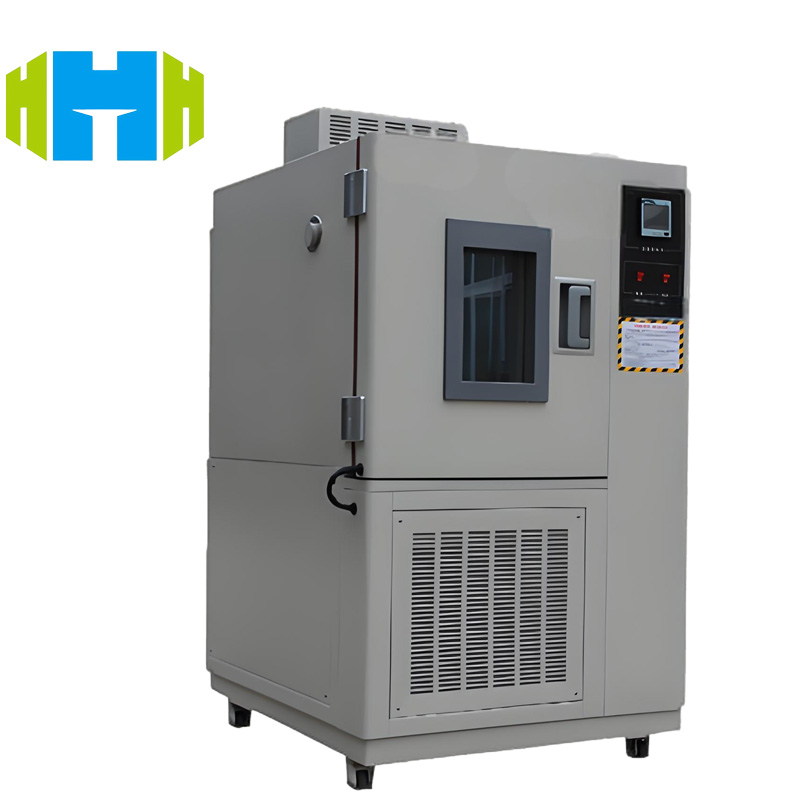

ET-001 is a precision environmental testing chamber designed to simulate extreme temperatures (-70℃ to 150℃) for reliability validation. With ±0.5℃ stability and ±2℃ uniformity, it complies with IEC 60068-2/-1 and ISO 16750-4, serving electronics, automotive, aerospace, and industrial sectors. The chamber enables temperature tolerance testing, material aging analysis, and stress performance evaluation, providing data-driven insights to optimize product quality for Singapore’s competitive market.

Item No. :
ET-001
Minimum Order Quantity (MOQ) :
1 set
Payment Method :
L/C, T/T
Price :
Negotiatable
Product Origin :
China
Supply Ability :
10 set per month
Lead Time :
30 days
Conventional packaging :
Plywood

Inquiry now

Product Details

High And Low Temperature Test Chamber -70℃~150℃ LEC60068 Compliant

Product Introduction:

In today’s demanding industries, products must withstand thermal stress—from Arctic cold to desert heat. ET-001 addresses this with:

Rapid Thermal Transitions: 5℃/min heating/cooling rates simulate real-world thermal shocks (e.g., automotive engine start-stop cycles).
Programmable Precision: 7-inch touchscreen allows custom multi-segment profiles (e.g., -40℃→120℃ cycles for aerospace components).
Safety-Centric Design: Overheat protection, gas leakage detection, and emergency stop ensure compliance with Singapore’s industrial safety regulations.

The chamber’s hermetic scroll compressor and low-power standby mode balance performance with energy efficiency, ideal for Singaporean labs and production lines.

Product Features:

Wide Temperature Range: -70℃ to 150℃ covers polar cold (Antarctic simulations) to industrial heat (engine compartment conditions).
Lab-Grade Precision:
- Stability: ±0.5℃ (25℃~100℃)
- Uniformity: ±2℃ (empty chamber, 25℃~100℃)
Rapid Thermal Cycling: 5℃/min linear rate (25℃→100℃ heating; 25℃→-40℃ cooling).
Intuitive Programming: Drag-and-drop test profiles, save 50+ custom sequences (e.g., "Singapore 湿热 + thermal shock" combo tests).
Multi-Layer Safety:
- Overtemp alarm (triggers at 5℃ above set point)
- Phase loss protection
- Leakage monitoring (refrigerant/gas)
Energy Efficiency:
- Standby power: ≤1kW (50% lower than competitors)
- Optimized compressor: 8,000-hour maintenance interval
Data Traceability: Auto-log temperature trends for 12 months, export as CSV/PDF (ISO 9001 audit-ready).
Modular Flexibility: Optional humidity module (20–98% RH, ±3% accuracy) for combined temperature-humidity tests.

International Standards

Standard	Clause	Test Coverage
IEC 60068-2-1	Low Temperature Test	-70℃ durability validation (Clause 5)
IEC 60068-2-2	High Temperature Test	150℃ performance stability (Clause 4)
ISO 16750-4	Road Vehicle Electronics	Thermal cycling for ECUs (Annex C)
IEC 61010-1	Laboratory Equipment Safety	Electrical safety compliance (Clause 6)

Product Applications

Electronics:
Test PCBs, sensors, and semiconductors for temperature-induced cracking or conductivity changes.
Automotive:
Validate ECUs, batteries, and sensors against ISO 16750-4 (e.g., -40℃ cold start reliability).
Aerospace:
Simulate high-altitude cold (-70℃) and engine heat (120℃) for avionics and thermal materials.
Industrial Equipment:
Test motors, valves, and control panels for durability in Singapore’s tropical climate (optional humidity module).
Consumer Goods:
Ensure wearables and appliances withstand extreme storage conditions (e.g., freezers or desert transport).

Technical Parameters

Parameter	Specifications
Temperature Range	-70℃ ~ 150℃
Stability (25℃~100℃)	±0.5℃
Uniformity (25℃~100℃)	±2℃
Heating Rate (25℃→100℃)	Up to 5℃/min (linear)
Cooling Rate (25℃→-40℃)	Up to 5℃/min (linear)
Internal Volume	100L (600×500×350 mm)
Power Supply	AC 220V/380V, 50/60Hz, 3-phase
Power Consumption	5–8 kW (peak)
Compressor Type	Hermetic scroll (noise ≤65 dB(A))
Control System	Microprocessor + 7” touchscreen
Safety Features	Overtemp alarm, phase loss protection
Optional Humidity	20–98% RH (±3% accuracy)
Data Logging	12-month storage, USB export
Operating Altitude	≤2000 m
External Dimensions	1200×800×1500 mm (L×W×H)
Weight	200kg

Test Objects & Detection Items

Test Objects:
- Electronics: PCBs, connectors, LED lights, wearables
- Automotive: Sensors, batteries, infotainment systems
- Aerospace: Actuators, flight control modules
- Industrial: Motors, pumps, solar inverters
- Packaging: Plastics, adhesives, seals
Core Detection Items:
- Thermal Performance: Operational limits (-70℃~150℃), thermal expansion
- Reliability: Sustained temperature failure rates, condensation risks
- Material Aging: Plastic cracking, metal fatigue, seal degradation
- Functional Testing: Motor speed stability, PCB signal integrity
