Our gas heating water boiler (wall-mounted boiler) test system is made to meet EN625-1996, EN483-1999, and similar standards. It lets you run performance tests on gas heating water boilers (wall-mounted boilers).
Item No. :
HJ-WMBT007Minimum Order Quantity (MOQ) :
1 SetPayment Method :
T/T,L/C,PaypalPrice :
NegotiatableProduct Origin :
Türkiye,ChinaSupply Ability :
One piece for three monthsLead Time :
90 working daysConventional packaging :
PlywoodGas wall-mounted boiler comprehensive performance test system
Product introduction:
This gas heating water heater (wall-mounted boiler) test system was made by us to meet EN625-1996, EN483-1999, and GB25034-2010 standards. It's made for testing how well gas heating water heaters (wall-mounted boilers) work.
It uses top-notch parts like quality sensors and flow transmitters. It works well and you can use it to mount and burn water heaters. It keeps track of water temperature coming in and out, water pressure coming in, gas pressure, water flow, and gas flow while it's burning.
It tests things like heat load, energy use, and how much hot water you get. It can automatically turn water and gas valves on and off, giving you full control. If you make gas appliances, this testing tool is a must-have.
Product features:
The whole machine structure is made of aluminum alloy and stainless steel. All pipes are made of SUS304 stainless steel, the structural frame is made of aluminum alloy, and the core components are all controlled by well-known domestic brands or imported components. It has accurate accuracy, stable performance, and a lifespan that is more than twice that of ordinary storage electric water heater performance test benches. It is a necessary testing equipment for the water heater industry.
Technical parameters:
| Item | Parameters |
| Inlet and outlet water temperature display |
range 0～60℃, 0～120℃ accuracy/minimum scale ±0.1%/0.1℃ |
| Gas pressure display |
Range: primary pressure: 0～5000 pa secondary pressure: 0～5000pa accuracy/minimum scale ±0.5%/1 pa |
| Bathroom water flow | 0～20L/MIN, accuracy/minimum scale ±0.1%/0.001L/min |
| Heating water flow | 0～30L/MIN, accuracy/minimum scale ±0.1%/0.001L/min |
| Gas flow | 0.04－6M3/H accuracy/minimum scale ±0.1%/1pa |
| Water inlet pressure |
high pressure: 0.0～1.6MPA low pressure～1.6MPA accuracy: 0.5 level |
| Heating system pressure | 0.0～1MPA,accuracy: 0.5 level |
| Gas temperature | 0～50℃, accuracy: 0.5 level |
Test items:
I. Heating performance test
1. Water temperature control deviation test
2. Minimum starting temperature test: Minimum operating water volume test, which can achieve normal ignition at a water flow rate of 2.5±0.5L/min, and normal extinguishing at a water flow rate of more than 2.0L/min;
3. Heating thermal efficiency test:
4. Heating heat output accuracy test
5. Gas primary pressure and secondary pressure test, etc.
II. Hot water performance test
1. Thermal efficiency test: Heating furnace thermal parameter calculation function, which can calculate thermal efficiency, load and other parameters according to current parameters;
2. Thermal load accuracy test
3. Hot water temperature rise test
4. Water stop temperature rise test
5. Heating time test: Heating time duration can be set
6. Hot water temperature stabilization time test, etc.

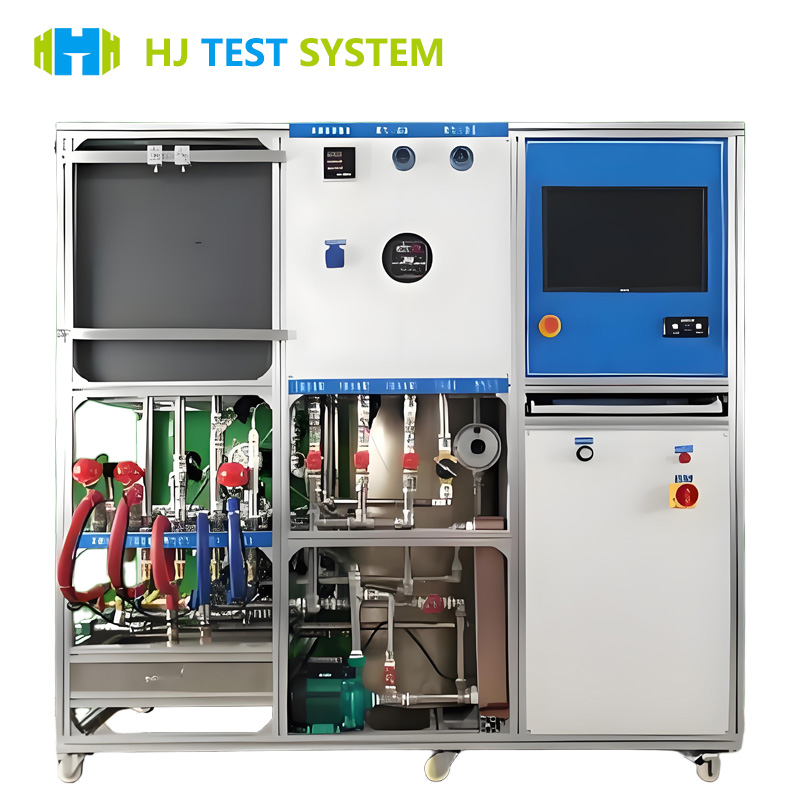

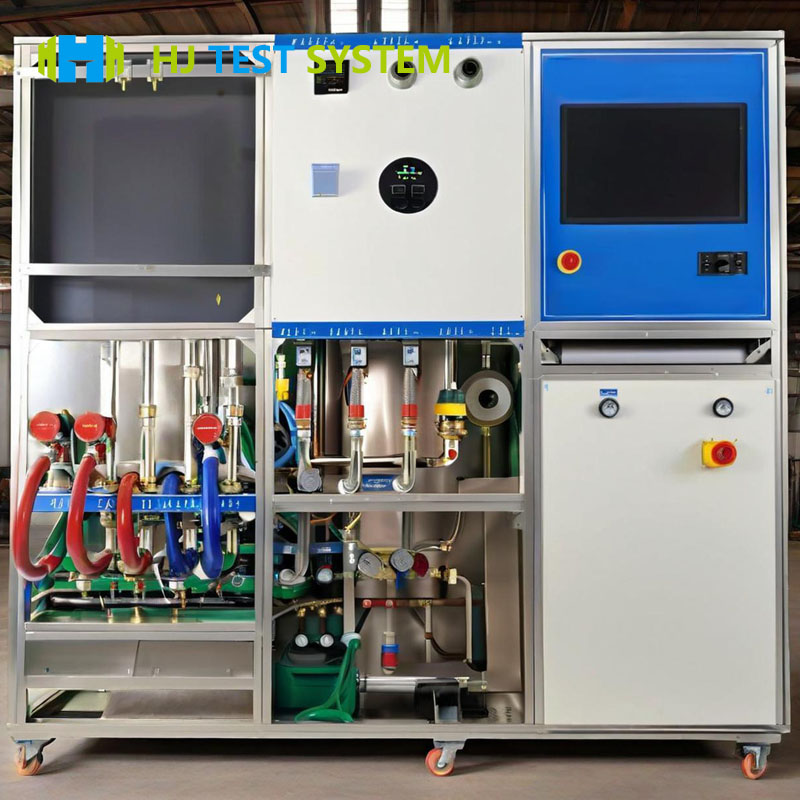

Product images：
