An electrolytic capacitor leakage current tester is a specialized instrument used to measure the leakage current of electrolytic capacitors. It plays a crucial role in ensuring the quality and reliability of capacitors in electronic devices. This article provides a detailed overview of the electrolytic capacitor leakage current tester, including its technical parameters presented in a table.
Item No. :
HJ-IEPTE-021Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C,T/T,PayPalPrice :
NegotiatableProduct Origin :
TurkiyeSupply Ability :
1 sets per 2 monthLead Time :
60 Working DaysConventional packaging :

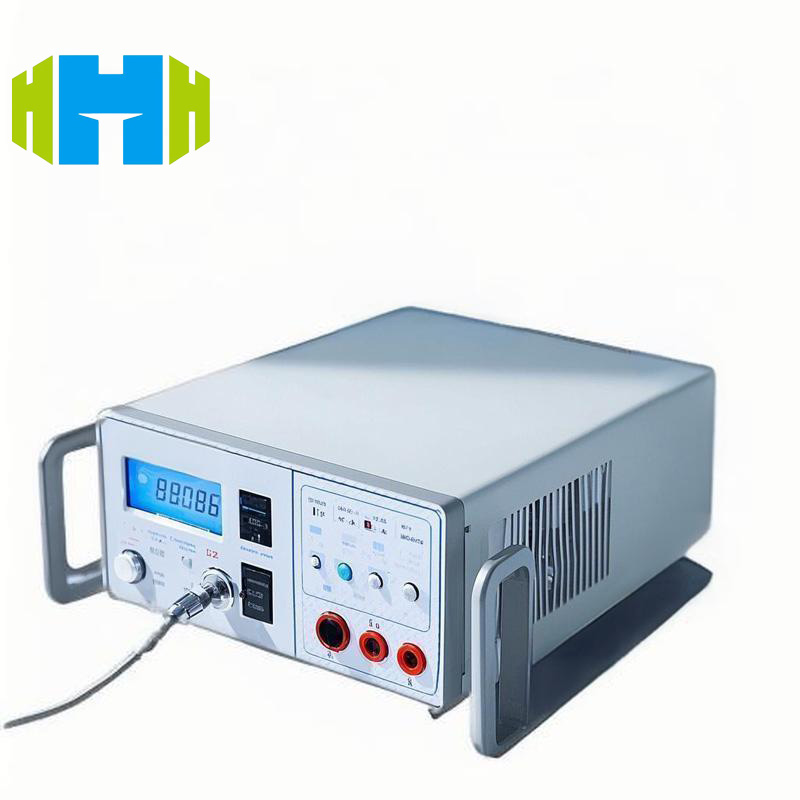

PlywoodElectrolytic Capacitor Leakage Current Tester
The electrolytic capacitor leakage current tester is designed for use in production lines for quality assurance and incoming inspection. It features continuously adjustable test voltages, digital displays for voltage and charging time, analog meter indications for current values, and automatic conversion between charging and testing modes. With its fast testing speed and intuitive operation, the tester offers a safe and reliable means of measuring leakage current.
|
Parameter |
Description/Range |
|
Test Voltage |
0 - 50 V, 0 - 200 V (some models may offer up to 500V) |
|
Voltage Accuracy |
±2% |
|
Set Value Accuracy |
±2 digits |
|
Current Measurement Range |
Multiple ranges, e.g., 0-30 mA in 10 steps:<br>0-1 μA, 1-3 μA, 2-10 μA, 10-30 μA, etc. |
|
Current Accuracy |
±2% (with ±0.5-digit readout error) |
|
Control Mode |
Analog circuit control |
|
Display Mode |
V: 3 1/2 LED display<br>I: Analog meter indication<br>T: 2-digit LED display |
|
Maximum Charging Current |
200 mA (1±20%) (some models may offer up to 300mA) |
|
Charging Time |
0 - 99 seconds (with 2%×Tset ± 0.5 second accuracy) |
|
Limit Setting |
Arbitrary setting within meter range |
|
Sorting |
Pass/Fail indication with audible alarm for failures |
|
Temperature |
0℃ - 40℃ |
|
Humidity |
≤90% RH at 40℃ |
|
Power Requirement |
198 V - 242 V AC, 47.5 Hz - 52.5 Hz |
|
Power Consumption |
≤50 VA |
|
Dimensions (W×H×D) |
350 mm × 135 mm × 275 mm (varies by model) |
|
Weight |
Approximately 4.2 kg (varies by model) |
Leakage Current (LC) Testing: Measures the leakage current of electrolytic capacitors accurately.
Insulation Resistance (IR) Testing: Evaluates the insulation performance of capacitors.
Basic Accuracy: Provides high accuracy measurements.
Precision Low-Constant Current Charging: Ensures stable charging conditions.
Continuously Adjustable Test Voltage: Allows for flexible testing across a wide voltage range.
Digital Display: Provides clear and intuitive readings of voltage, current, and charging time.
Comparator Function: Automatically sorts capacitors into pass/fail categories.
Interfaces: Standard RS232, Handler interfaces, with optional GPIB interface for data communication.
Electrolytic Capacitor Withstand Voltage Measurement: Tests the withstand voltage of capacitors under specified conditions.
Leakage Current Measurement: Measures the leakage current of capacitors to ensure they meet quality standards.
Zener Diode Measurement: Verifies the Stable pressure value of zener diodes.
Withstand Voltage Measurement of Transistors and Diodes: Tests the withstand voltage of semiconductor devices.
In summary, the electrolytic capacitor leakage current tester is an essential tool for quality control in electronic manufacturing. Its accurate measurements and intuitive operation make it a reliable choice for ensuring the performance and reliability of electrolytic capacitors.
