In the complex and demanding field of industrial electrical equipment, the reliability of electrical connectors is of paramount importance. The Insertion and Extraction Life Tester is a crucial instrument that plays a significant role in ensuring the durability and long-term performance of these connectors. This article will provide a detailed exploration of this tester, highlighting its key features, parameters, and the benefits it brings to manufacturers.
Item No. :
HJ-IEPTE-002Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C,T/T,PayPalPrice :
NegotiatableProduct Origin :
TurkiyeSupply Ability :
1 set per 2 monthLead Time :
60 Working DaysConventional packaging :
Plywood

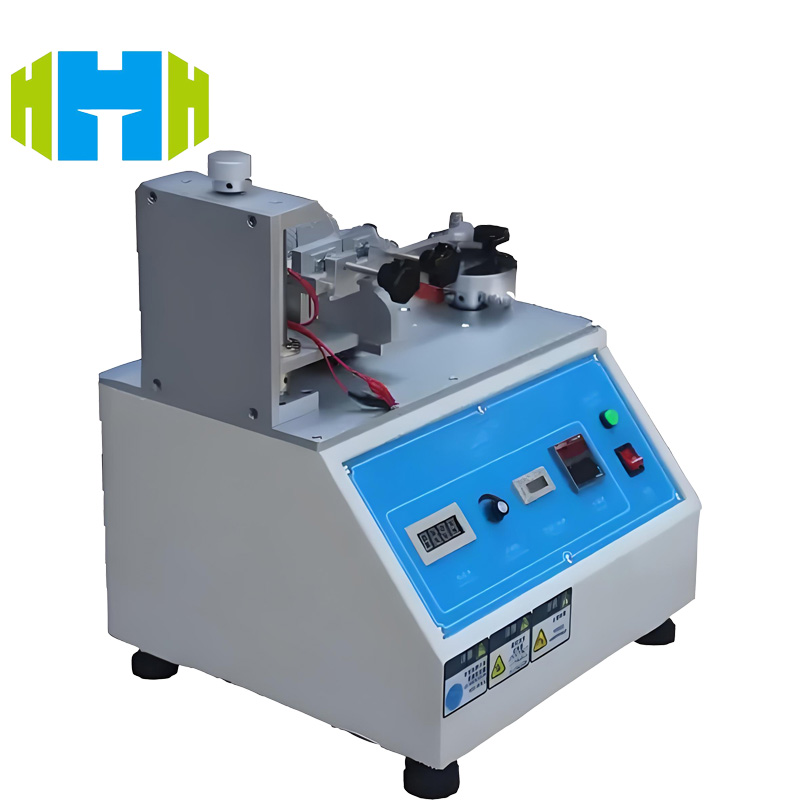

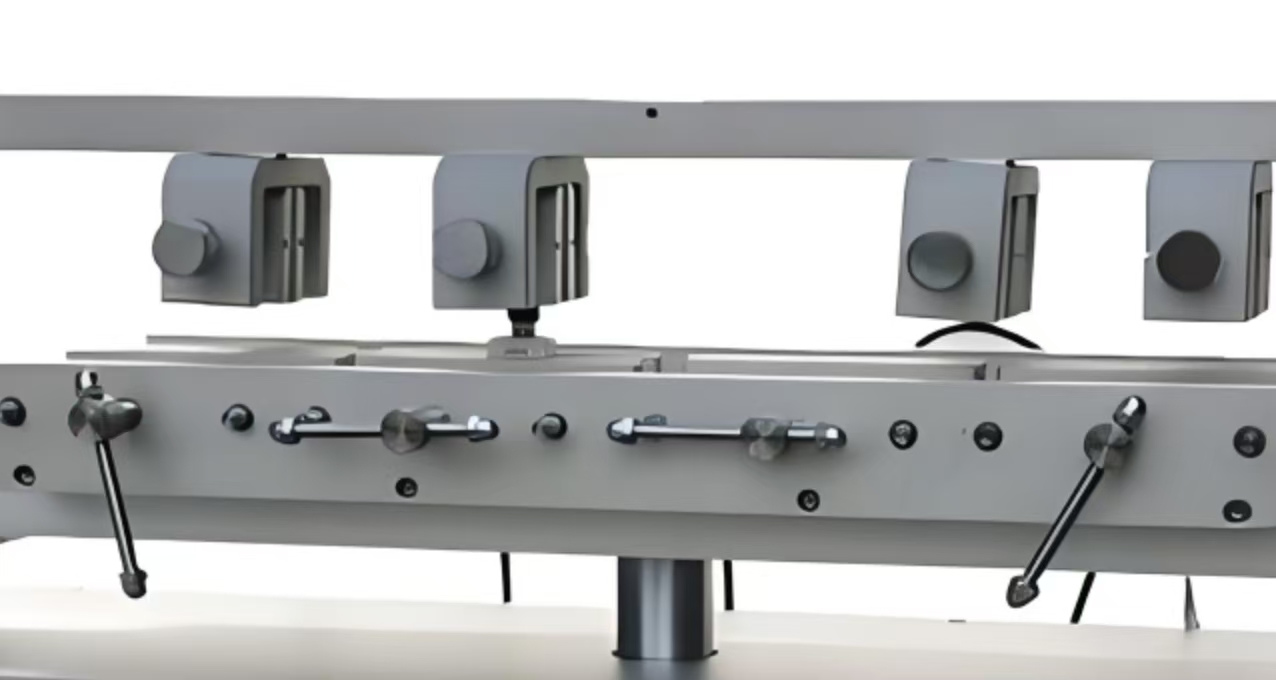

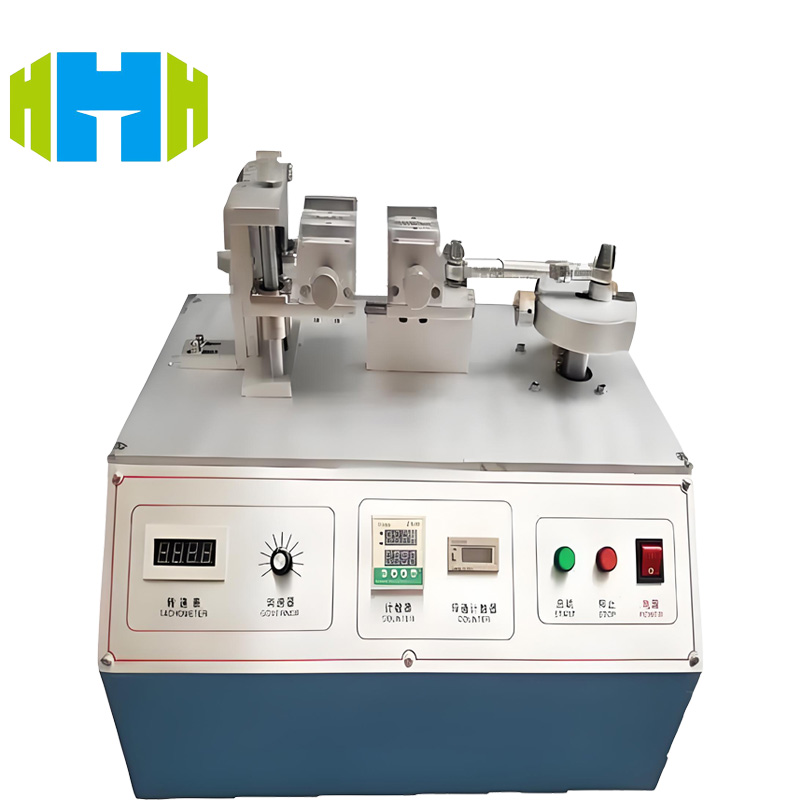

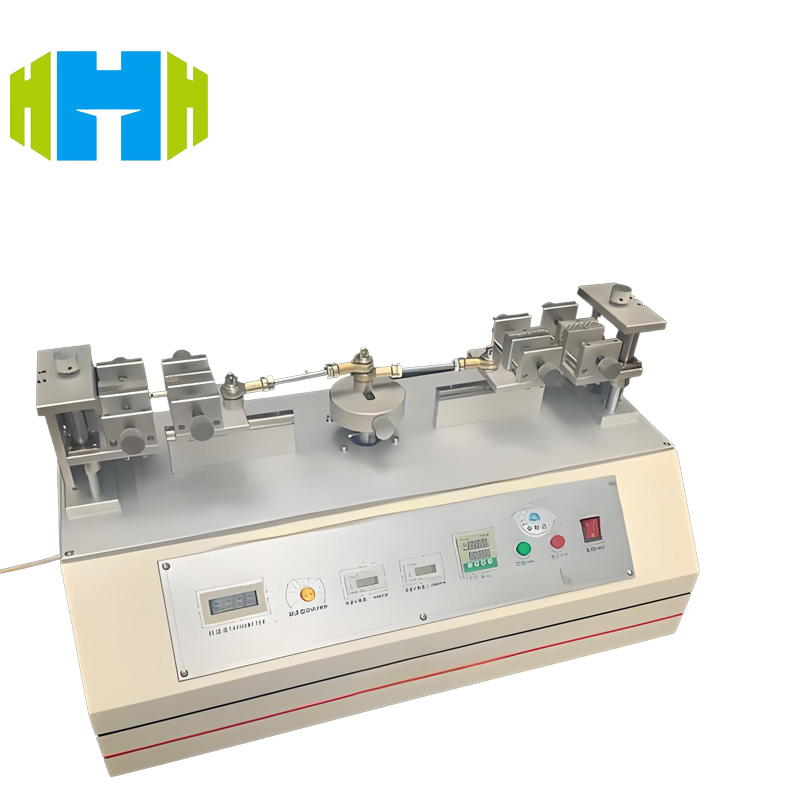

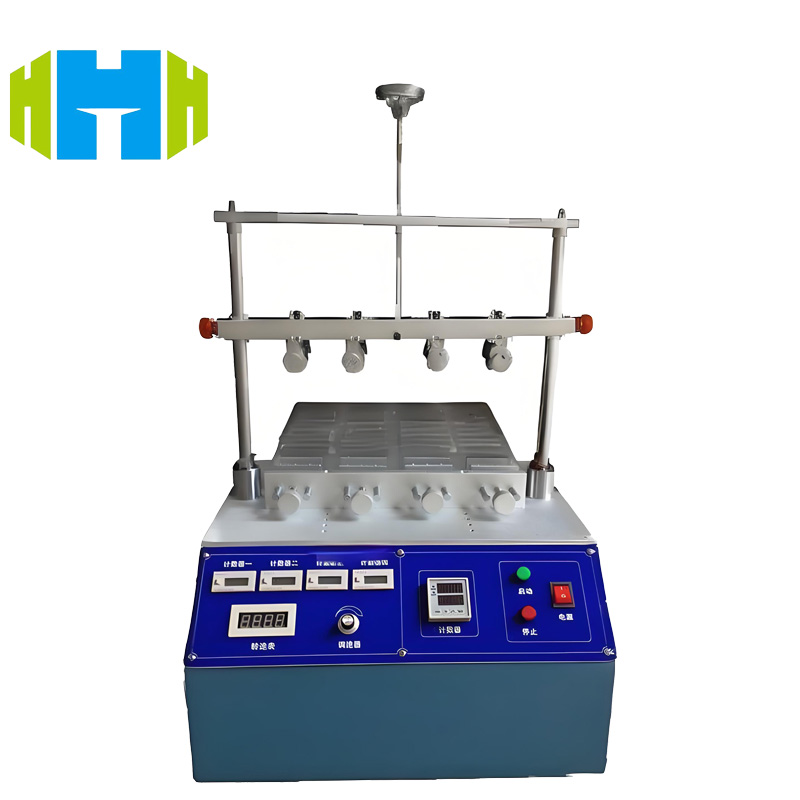

The Insertion and Extraction Life Tester is designed to simulate the repetitive insertion and extraction processes that electrical connectors experience during their service life. By subjecting the connectors to a large number of cycles under controlled conditions, it accurately assesses their ability to maintain reliable electrical contact and mechanical integrity over time. This helps manufacturers identify potential weaknesses in the connector design or manufacturing process early on, enabling them to take corrective actions and improve the overall quality of their products.
Key Testing Parameters
|
Parameter |
Value/Range |
Description |
|
Test Cycle Range |
100 - 50,000 cycles |
Allows testing of connectors with different expected lifetimes, ensuring durability evaluation across various scenarios. |
|
Insertion and Extraction Speed |
1 - 100 mm/s |
Adjustable speed range to mimic different handling and production speeds, helping analyze connector performance and optimize design. |
|
Connector Compatibility |
Multiple types (e.g., USB, HDMI, etc.) and sizes (from 1 mm to 50 mm diameter connectors) |
Accommodates a wide variety of connectors, facilitating comprehensive quality control for manufacturers. |
|
Monitoring and Data Recording |
Records contact resistance (0 - 100 mΩ), forces (0 - 100 N), and detects physical damage |
Advanced system tracks key parameters and records data for improving connector design and manufacturing processes. |
Testing Process and Methodology
The testing process begins with carefully preparing the electrical connector samples. The samples are securely mounted onto the appropriate fixtures of the Insertion and Extraction Life Tester. The desired test cycle range, insertion and extraction speed, and other parameters are set according to the specific requirements of the connectors and the intended applications. Once the test starts, the machine automatically performs the repetitive insertion and extraction operations. During the test, the monitoring systems continuously collect data and monitor the condition of the connectors. If any abnormal readings or signs of failure are detected, the test can be paused for further investigation. After the completion of the specified number of cycles, the connectors are thoroughly examined for any visible damage or degradation. The collected data is then analyzed to determine the connectors' performance and to identify areas for improvement.
Enhanced Product Reliability: By subjecting connectors to extensive life testing, manufacturers can significantly reduce the risk of in-service failures. This ensures that the electrical equipment incorporating these connectors operates smoothly and reliably, minimizing downtime and maintenance costs.
Quality Assurance and Compliance: The use of the Insertion and Extraction Life Tester helps manufacturers meet industry standards and regulations related to connector durability. This is essential for market access and maintaining a good reputation in the industry. It also provides a reliable means of verifying the quality of the connectors and ensuring consistent performance across different production batches.
Design Optimization: The detailed test results obtained from the tester allow engineers to identify the weak points in the connector design. Based on this information, they can make design modifications to improve the connector's resistance to wear and fatigue, enhance its contact reliability, and optimize its mechanical structure. This iterative process of testing and design improvement leads to more robust and reliable connector designs.
Cost Savings: Early detection of potential connector failures through life testing can prevent costly product recalls, repairs, or replacements. By optimizing the connector design from the beginning, manufacturers can also reduce material costs by using the most appropriate materials and manufacturing processes without over-engineering.
In conclusion, the Insertion and Extraction Life Tester is an indispensable tool for manufacturers of industrial electrical equipment. Its ability to accurately assess the insertion and extraction life of connectors under various conditions makes it a valuable investment for ensuring product quality and reliability. With its advanced features and parameters, it empowers manufacturers to produce high-quality electrical products with reliable connectors, enhancing customer satisfaction and market competitiveness.
