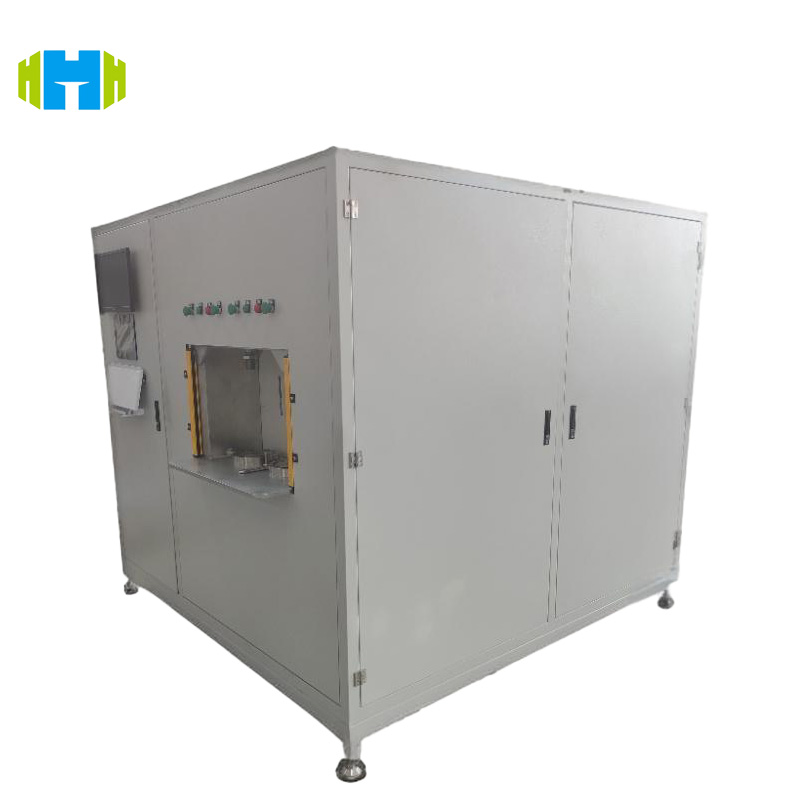

This Bellows Accumulator Helium Leak Detection Equipment is a high - performance device designed for detecting the sealing performance of metal bellows in accumulators. It is developed by Guangzhou Hejin Automation Control Technology Co., Ltd., tailored to meet the strict requirements of customers such as BYD Precision Manufacturing Co., Ltd.
Item No. :
HJ-APAT-005Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C,T/T,PayPalPrice :
NegotiatableProduct Origin :
TurkiyeSupply Ability :
1 sets per 2 monthLead Time :
60 Working DaysConventional packaging :
PlywoodThe equipment operates based on the principle of helium leak detection. It uses helium as a tracer gas. Once the workpiece is placed in the vacuum box and connected, the system can automatically carry out a series of operations, including large - leak and strength detection, evacuation, helium filling, micro - leak detection, and helium recovery. This fully - automated process not only ensures high - speed production but also provides extremely high leak - detection accuracy, effectively meeting the needs of mass - production quality control.

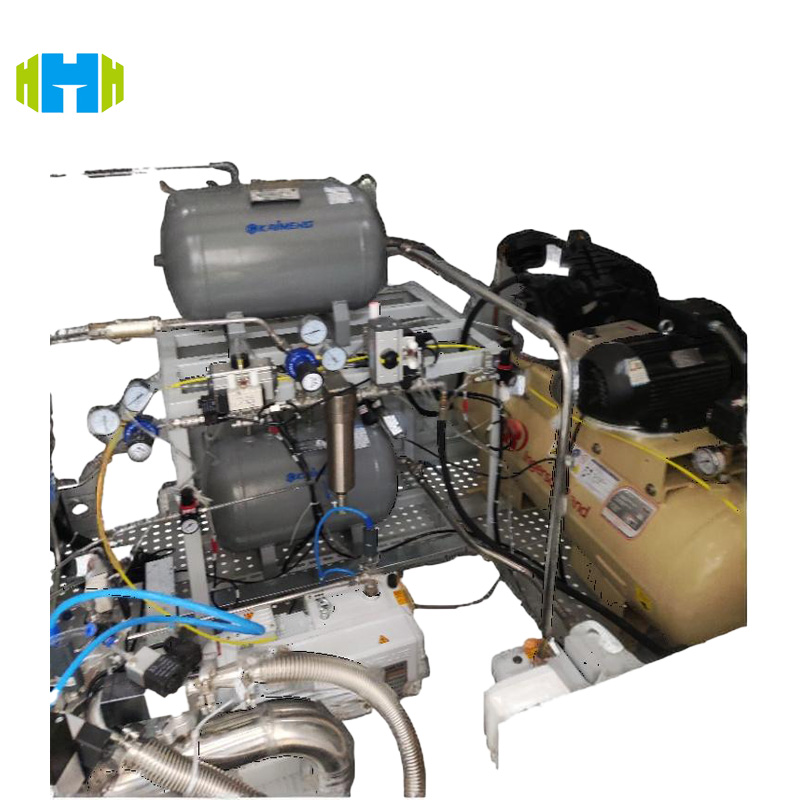

The equipment is composed of multiple advanced units. The vacuum box unit is made of high - quality stainless - steel with a special surface treatment, ensuring excellent airtightness and durability. The vacuum and leak - detection unit is equipped with well - known brand components like BAOSI/VALUE vacuum pumps and AGILENT vacuum gauges, guaranteeing reliable vacuum - creating and accurate leak - detecting functions. The electrical control unit, featuring PLC control and a 10 - inch color touch - screen, uses high - end electrical components from brands such as FUJI and Schneider, ensuring stable and long - lasting operation. The helium filling and recovery unit can monitor the helium concentration in real - time and automatically replenish helium when necessary, which not only improves the efficiency of the leak - detection process but also reduces the cost of helium use.
In terms of after - sales service, the supplier offers a comprehensive package. There is a 1 - year quality guarantee period starting from the final acceptance. During this period, free technical support is provided. Once a fault is reported, the supplier will respond within 8 hours and provide a solution within 24 hours. If spare parts are needed, they will be assisted in procurement and installation, and the problem will be resolved within 48 hours. Even after the warranty period, the supplier still provides timely, high - quality, and cost - effective technical services and spare parts, ensuring the long - term stable operation of the equipment.
Bellows Accumulator Helium Leak Detection Equipment Parameters
|
Parameter |
Value |
|
Applicable Workpiece |
Bellows accumulator |
|
Leak Detection Gas for Micro - Leak Detection |
Helium |
|
Gas for Detecting Large Leaks of Workpiece |
Nitrogen |
|
Leak Detection Pressure (Large Leak/Micro - Leak) |
1 bar |
|
Workpiece Sealing Method |
Manual |
|
Workpiece Alarm Leak Rate |
< 5×10⁻⁹ mbar·L/s (much lower than the industry standard, indicating higher detection accuracy) |
|
Production Cycle |
45 seconds/piece (including workpiece loading and unloading, faster than the general 60 - second cycle in the market, improving production efficiency) |
|
Helium Recovery Utilization Rate |
≥90% (significantly higher than the required 80%, saving costs) |
|
Vacuum Box Quantity |
2 sets |
|
Dimensions |
2000mm×2500mm×2000mm (compact size, saving factory space) |
|
Weight |
1500 KG (relatively lightweight for easy installation and movement) |
|
Appearance Color |
RAL7035 (standard and elegant color) |
|
Detection Range of Leak Detector |
1×10⁻³ Pa·m/s - 1×10⁻¹³ Pa·m²/s (wide range for detecting various leakage levels) |
|
Adjustable Hydrogen Detection Concentration |
75% - 85% (flexible adjustment to adapt to different detection requirements) |
|
Power |
15 KW (lower power consumption compared to similar products, reducing operating costs)
|
