This equipment is a helium detector for the steel shell battery after the injection hole is sealed and welded. It encompasses a comprehensive range of operations, from battery scanning and loading, through evacuation, helium filling, helium inspection, to unloading. Equipped with a helium leak detector, this apparatus detects helium signals within the leak detection chamber, allowing for rapid and highly accurate assessment of any leaks in the workpiece.
Item No. :
AM0059Minimum Order Quantity (MOQ) :
1Payment Method :
T/TPrice :
/Product Origin :
ChinaSupply Ability :
/Lead Time :
30 daysConventional packaging :

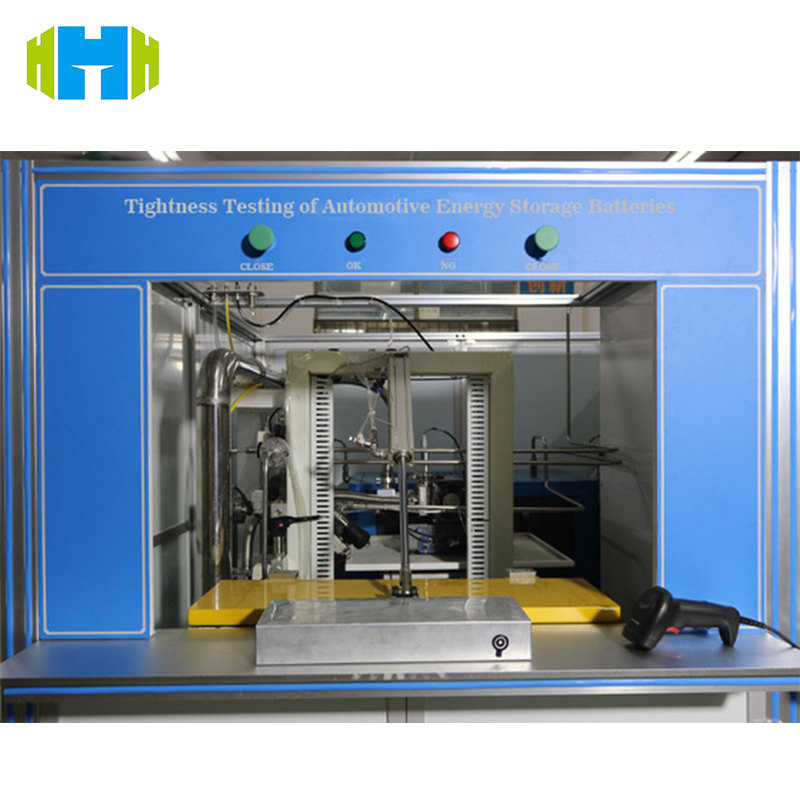

wooden boxTightness Testing of Automotive Energy Storage Batteries
Product Summary:

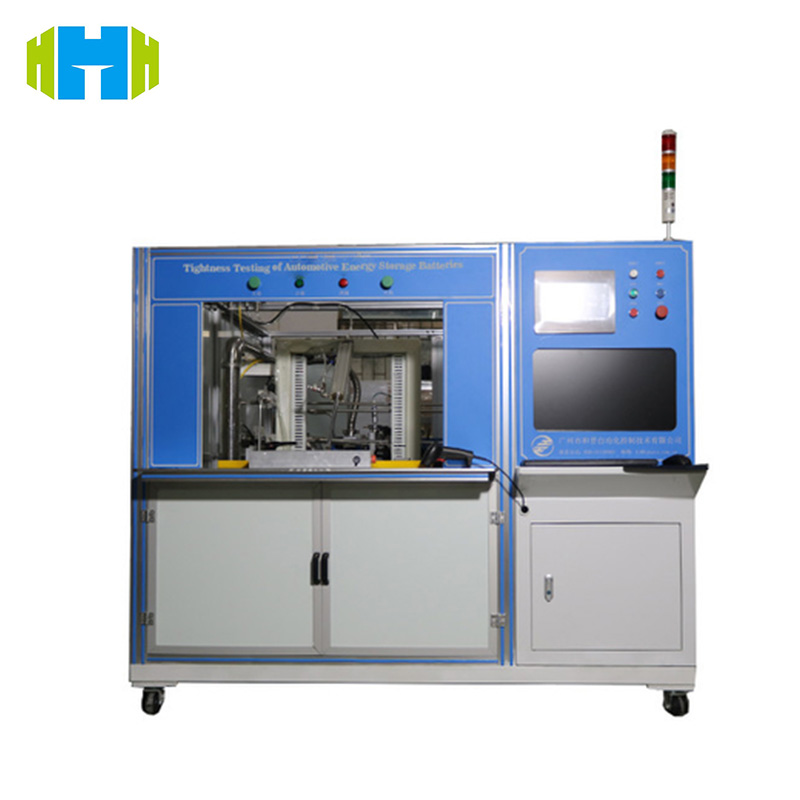

This is a helium leak detector specifically designed for automotive energy storage batteries. It has advanced automatic sealing function, powerful data processing and parameter storage options. The machine is equipped with a testing station that can be manually loaded and unloaded. It is worth noting that each product requires two sets of fixtures, which need to be replaced when testing various battery models. This detector ensures reliable and accurate leak detection.
Technical Parameters:
|
Size |
≦2000mm*2500mm*2000mm |
|
|
Alarm leak rate |
5E-5 mbar.l/sec |
|
|
Energy consumption |
15KW |
|
|
Detection station |
1 station |
|
|
Helium filling pressure |
0-0.5MPa |
|
|
Gross leak detection method |
Negative pressure leak detection |
|
|
Production takt |
34s/piece |
Including manual operation for 6 seconds |
|
Product sealing method |
Automatically |
|
|
Loading and unloading products |
Manual |
|
|

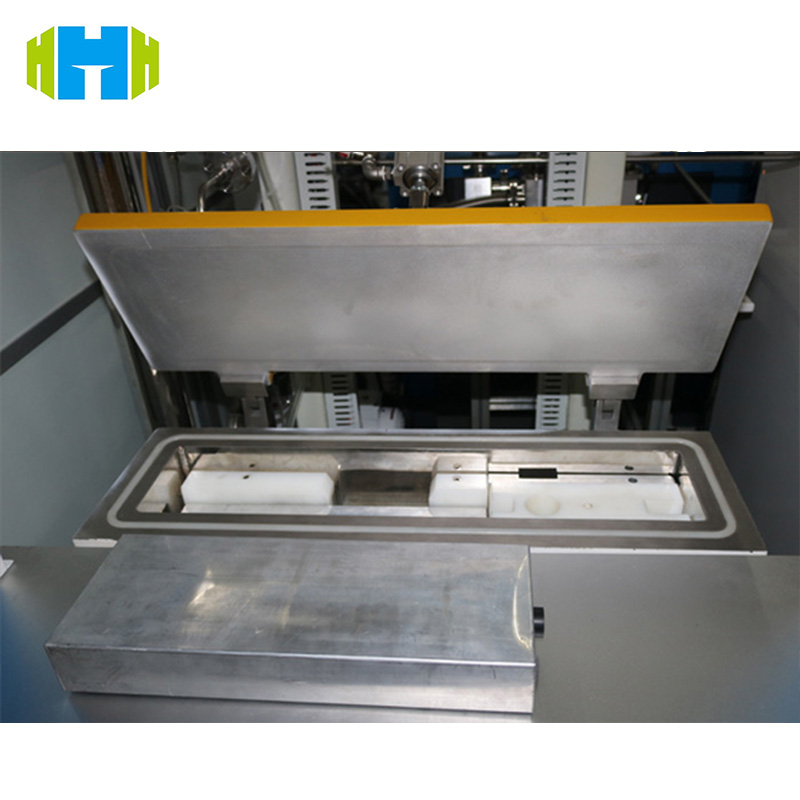

Fixture |
A total of 2 sets of fixtures for 1 product |
Fixtures need to be changed when testing different products |
|
Data processing |
With data processing and parameter storage function |
Data processing |
|
Noise |
≦75db(1 meter away from the device) |
Does not count when the device starts |
