This automobile water tank expansion blasting testing machine utilizes a pulse pump to generate pressure, which is then collected by a pressure sensor. The operating software controls the pressure, enabling the execution of a pressure pulse fatigue test.

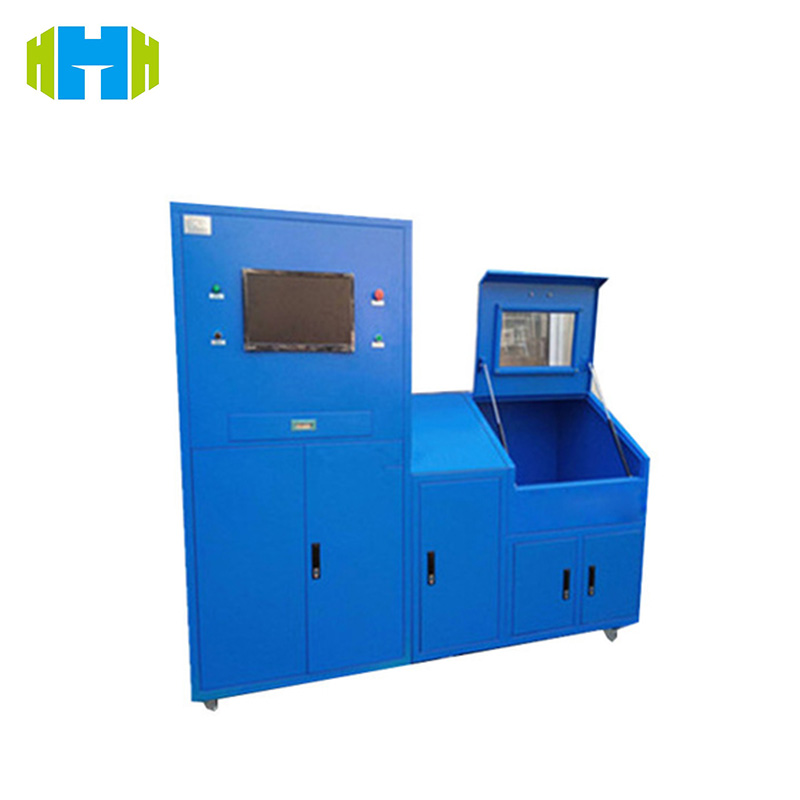

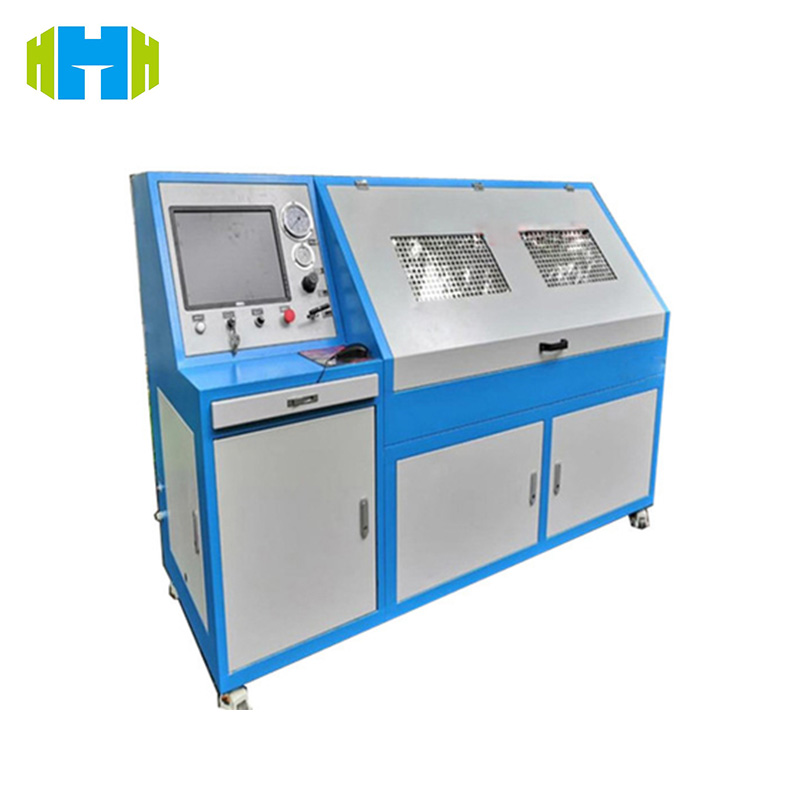

60 times/min Automobile Water Tank Expansion Blasting Testing Machine
Scope of application:
Automobile expansion water tank, pressure water tank, gas storage tank.
Test sample:
Measuring range: 0 ~ 300mpa
Test pressure: 0-1mpa (can be customized according to requirements)
The test frequency: 0-1.5HZ
The test medium: water or oil
The test temperature: 150 degrees
Waveform: triangle wave, trapezoidal wave, square wave.Auto parts performance testing equipment
Technical parameters:
|
Test pressure |
0-300Mpa |
|
Accuracy of pressure control |
Test pressure upper limit +2%, lower limit -1% |
|
Pressure resolution |
0.01Mpa |
|
Pulse test frequency |
25-60times/min |
|
The test medium |
Water, hydraulic oil |
|
Mode of operation |
Computer automatic control/manual control |
|
Installation method of specimen |
The screw thread |
|
Structural components |
Pulse pressure generation system, control system, alarm system Auto parts testing equipment |
