Automobile pipe bursting test machine is a high-precision, intelligent automobile pipe bursting test equipment developed by Guangzhou Hejin Automation Control Technology Co., Ltd. (Turkey Branch), which is specially designed for strength testing and reliability verification of automobile pipes. The equipment simulates extreme conditions in actual use environments to ensure the performance of automobile pipes in various scenarios and meet the high standards of the global automobile manufacturing industry.
Item No. :
HJ-AAP-002Minimum Order Quantity (MOQ) :
1 setPayment Method :
L/C,T/T,PayPalPrice :
NegotiatableProduct Origin :
TürkiyeSupply Ability :
1 sets per 3 monthsLead Time :
60 Working DaysConventional packaging :
PlywoodAutomobile Pipe Bursting Test Machine for Automotive Industry
Product Introduction:
Automobile pipe bursting test machine is an integrated test equipment that can test the burst strength, fatigue crack and other mechanical properties of automobile pipes. The equipment adopts advanced measurement technology and control system, which can accurately measure key parameters such as stress, strain and crack growth rate of pipes during the bursting process. Through scientific testing schemes, users can quickly evaluate the performance of automobile pipes to ensure their safety and durability in actual use.
Product features:
High precision and stability:
1. Pressure control accuracy ±1%, measurement accuracy ±0.25%, ensuring the reliability of test data.
2. Adopting hydraulic servo closed-loop control technology, it supports arbitrary setting of pressure increase speed (0~500MPa/min).
Wide temperature range testing capability:
The ambient temperature supports -40~150℃, and the medium temperature can be adjusted to 150℃, meeting the high temperature/low temperature working condition simulation requirements4.
Energy saving and environmental protection:
There is no energy consumption during the pressure holding process, and the pipeline system adopts non-welding connection to reduce maintenance costs.
Multi-industry adaptation:
Applicable to automotive pipes such as brake hoses, fuel systems, air conditioning pipes, and compatible with the testing needs of refrigeration, power and other industries.
Technical standards:
International standards: Comply with ISO 4038 (brake hose), ISO 11425 (fuel pipe) and other international standards.
Industry specifications: Adapt to GB 16897-2010 "Structure, performance requirements and test methods of brake hose".
Technical Parameters:
| Project | Parameters |
| Maximum test pressure | 0~280MPa (higher pressure can be customized) |
| Pressure control accuracy | ±1% |
| Pressure increase rate | 0~500MPa/min (adjustable) |
| Test medium | Water, oil, hydraulic oil, emulsion |
| Temperature range | Ambient temperature: -40~150℃; Medium temperature: room temperature~150℃ |
| Data recording | Automatically save pressure-time curve and burst value |
| Number of stations | 1~2 stations (multi-station parallel testing is optional) |
Uses and scope:
Application areas: Pressure resistance and burst testing of automobile brake hoses, fuel pipes, cooling pipes, and air conditioning system pipes. Sealing verification of energy storage battery shells and compressors (can be combined with helium leak detection technology).
Applicable industries: automobile manufacturing, new energy, refrigeration equipment, power equipment, etc.

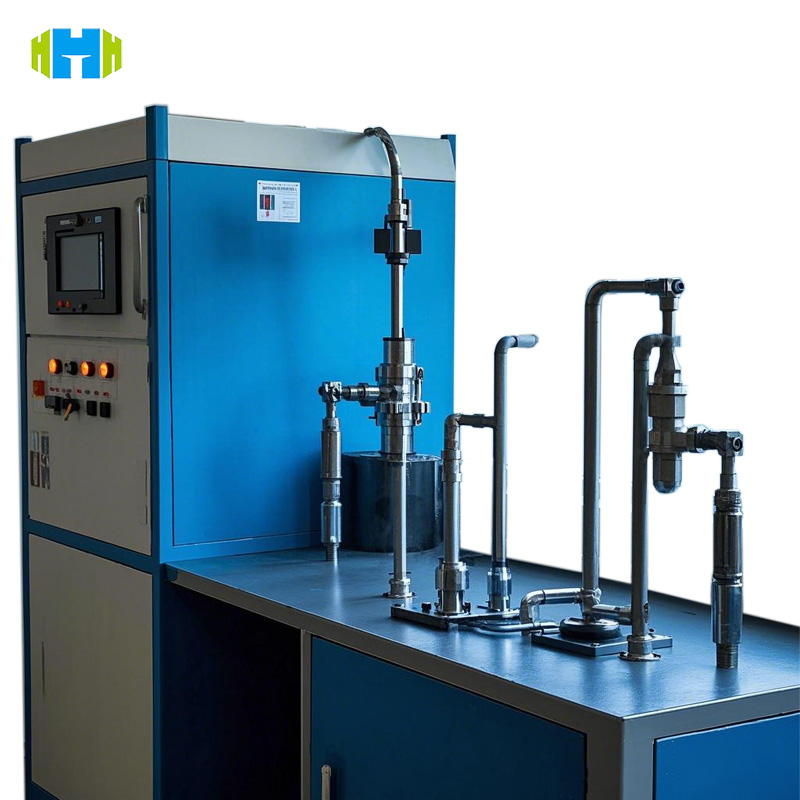

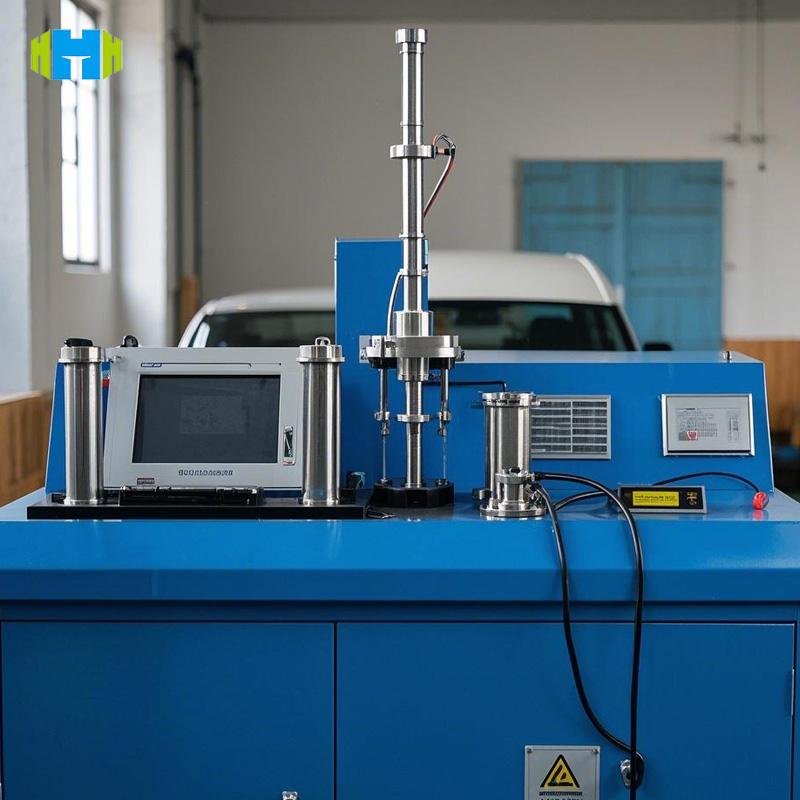

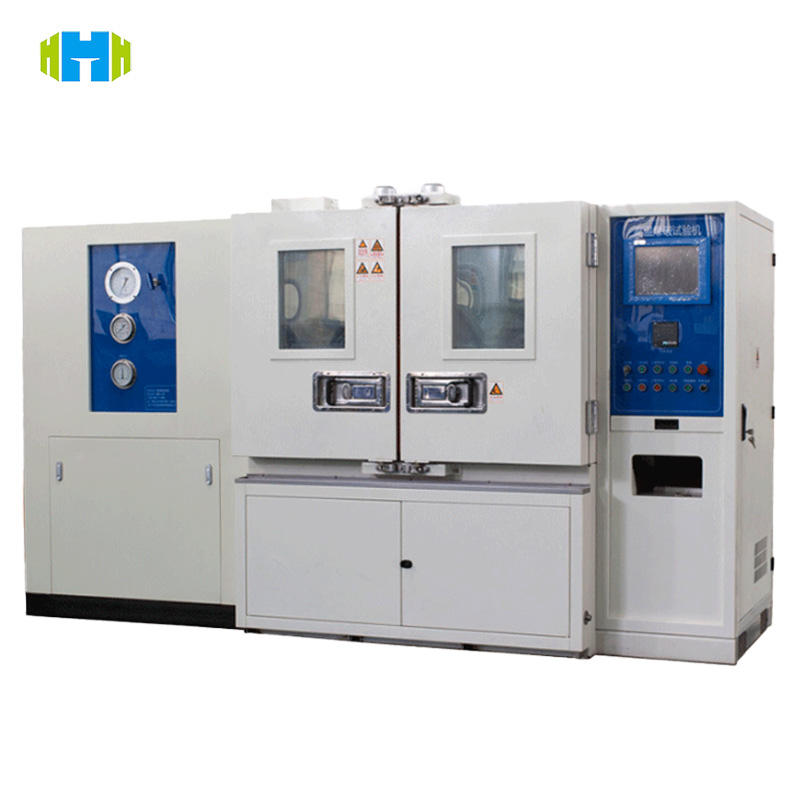

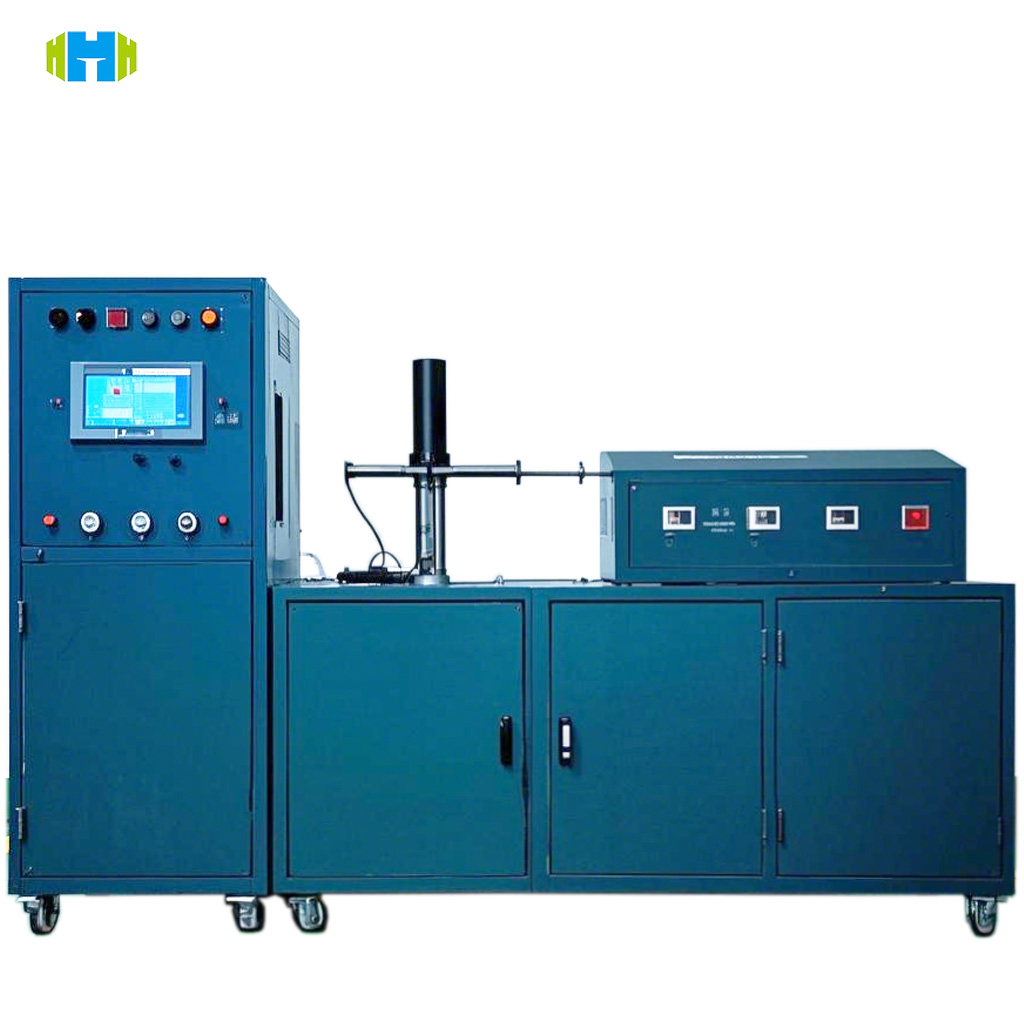

Detailed pictures:
After-sales service:
Global service network: HJ Turkey Branch provides localized technical support and responds to fault reports within 72 hours.
Training and acceptance: Free operation training is provided, and assistance is provided to complete equipment acceptance.
Warranty policy: 1 year warranty for the whole machine, lifetime warranty for core components.
