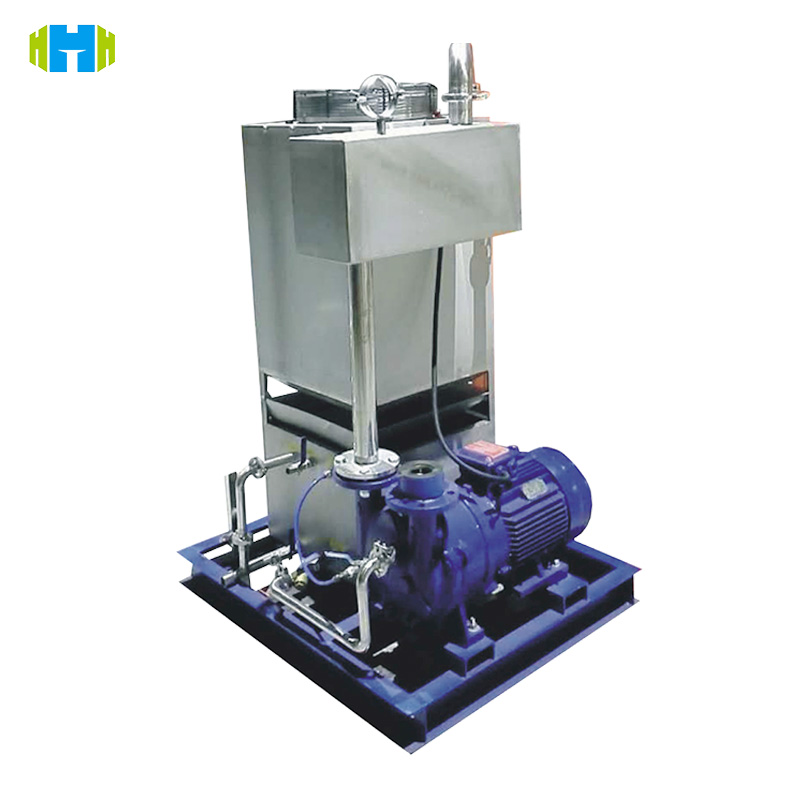

Air-Cooled Water Ring Vacuum Unit Oil-Free Closed Circulation System

VEAT-006 is a fully integrated air-cooled water ring vacuum system, integrating water ring vacuum pump, gas-liquid separator, air-cooled radiator and intelligent control cabinet, realizing the core advantages of "air-cooled self-cooling (no external water required) + closed cycle (95% water saving) + 24h full-load operation", suitable for scenes without cooling water and harsh working conditions (such as outdoor and high-temperature production lines), meeting ISO 16078 safety and GB 19153 energy efficiency standards, covering vacuum distillation, drying, dust removal and other processes.

Item No. :
VEAT-006
Minimum Order Quantity (MOQ) :
1 Set
Payment Method :
L/C, T/T
Price :
Negotiatable
Product Origin :
china
Supply Ability :
10 Set per month
Lead Time :
90 Days
Conventional packaging :
Plywood

Inquiry now

Product Details

Air-Cooled Water Ring Vacuum Unit Oil-Free Closed Circulation System

Product introduction:

Traditional water ring vacuum pumps require external cooling water, facing pain points such as limited installation (no water source scenario), complex pipelines, and cumbersome maintenance. VEAT-006 reconstructs the vacuum system through three major innovations:

Air-cooled self-cooling: built-in finned air-cooled radiator, direct evaporation cooling of the working fluid, no external cooling water required, suitable for outdoor and remote production lines (such as vacuum testing of desert photovoltaic power stations);
Complete set delivery: pre-installed gas-liquid separator (demist and resistance reduction), rack, internal pipelines, only need to "connect electricity + process port" on site, shortening the installation cycle by 80%;
Closed cycle + oil-free: closed-loop circulation of working fluid (loss ≤5%/day), oil-free lubrication of the entire system, avoiding oil mist pollution (such as food and pharmaceutical vacuum processes), meeting Class 6 clean room requirements.

International reference standards:

GB/T 13929-2010: Pumping speed deviation ≤±5%, ultimate vacuum ≤300Pa
ISO 16078-1:2021: Pressure protection (≤1.6MPa), electrical IP54
ISO 14001:2015: Working fluid circulation rate ≥95%, water saving compliance
GB 19153-2019: Energy consumption per unit pumping speed ≤0.18kW・h/m³

Technical Parameters

Parameter	Specification
Model No.	VEAT-006
Core Components	Water-ring pump, gas-liquid separator, air-cooled radiator, intelligent control cabinet
Ultimate Vacuum	≤300 Pa（steady state）
Pumping Speed	30~300 m³/h（customizable, at 10kPa）
Cooling Method	Air-cooled self-evaporation（no external cooling water）
Working Fluid Cycle	Closed-loop, consumption ≤5%/day
Noise Level	≤72 dB(A)（1m distance）
Power Supply	380V±10%/50Hz, 3~20kW（depending on config）
Temperature Adaptation	-10~45℃（ambient）
Protection Rating	IP54（cabinet）/ IP44（motor）
Operation Mode	24/7 continuous load
Harsh Environment Adaptation	Temp: -10~45℃, Humidity: ≤90%RH（non-condensing）
Connection Size	DN40~DN120（flange, customizable）
Equipment Weight	250~600kg（depending on config）
Dimensions (L×W×H)	1400×900×1500mm（basic model）
Energy Efficiency	≤0.18kW·h/m³（GB 19153 compliant）
Communication Protocol	Modbus/RS485（MES integration support）
Cleanliness Grade	Class 6 cleanroom compatible（oil-free）
