Our gas tightness testing equipment, specifically designed for assessing the airtightness of automobile expansion water tanks. By introducing a controlled gas source into the tank and maintaining a constant pressure, our machine precisely monitors for any pressure drops that could indicate leakage.

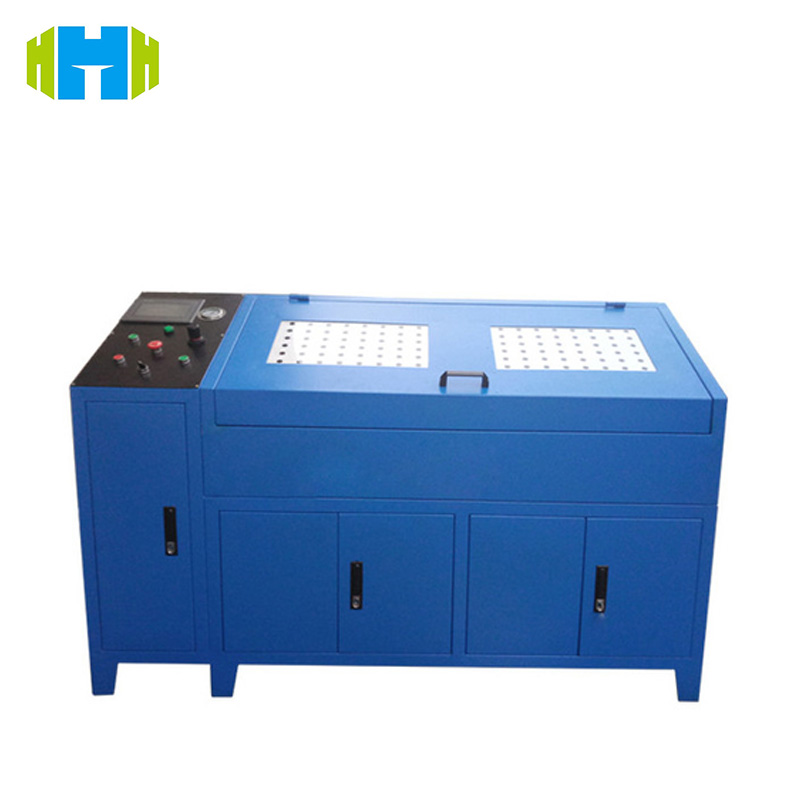

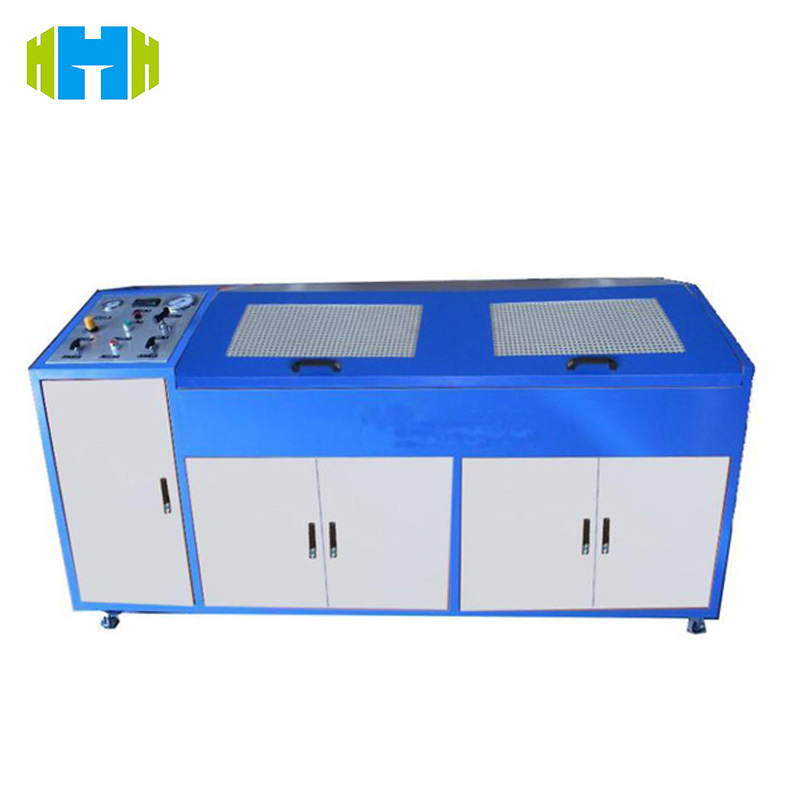

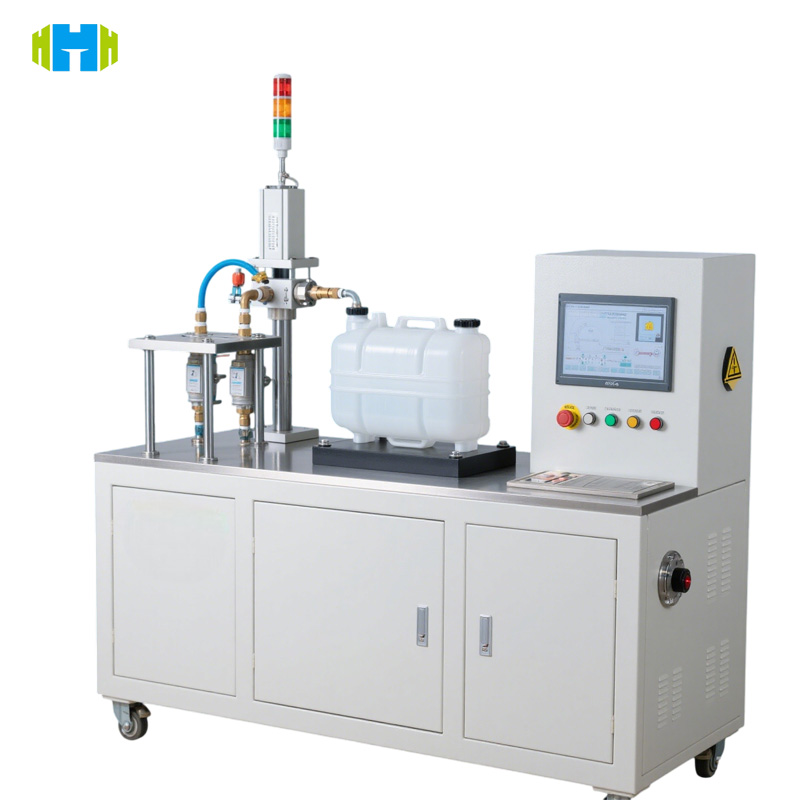

0.001Mpa Automobile Expansion Water Tank Auto Parts Air Tightness Testing Equipment
Key Features and Advantages:
High precision in detecting minute leaks, ensuring the integrity and durability of automobile components.
User-friendly controls and interface for straightforward operation and results interpretation.
Versatile enough to accommodate various types and sizes of automobile expansion kettles and expansion water tanks.
Application Scope:
This equipment is ideal for the automotive industry, where it plays a vital role in quality control during the production of automobile expansion water tanks. It ensures compliance with stringent airtightness standards, thereby guaranteeing optimal vehicle performance and safety.
Performance parameter:
|
Test pressure |
0~6Bar |
|
Control pressure accuracy |
+ 2% of the upper test pressure value and-1% of the lower limit |
|
Pressure value resolution |
0.001MPa |
|
Pressure pickup |
The test pressure sampling frequency was 0.5s |
|
Test medium |
Air |
|
Pressure control mode |
Manual or automatic |
|
Mode of operation |
Manual control, computer control |
|
Number of samples |
1 Road control test pressure and test time (roads are customizable) |
|
Method of sample installation |
Automatic chucking |
